FFC03001-31SBB114W5M
FPC/FFC连接器 0.3mm 卧贴下触点 31位(1mm)(掀锁)(金)
FPC/FFC connector 0.3mm Lower Contact 31Circuits(1mm)(SMT)
Product Number：FFC03001-31SBB114W5M
Production Status： Active
FPC/FFC connector 0.3mm Lower Contact 31Circuits(1mm)(SMT)

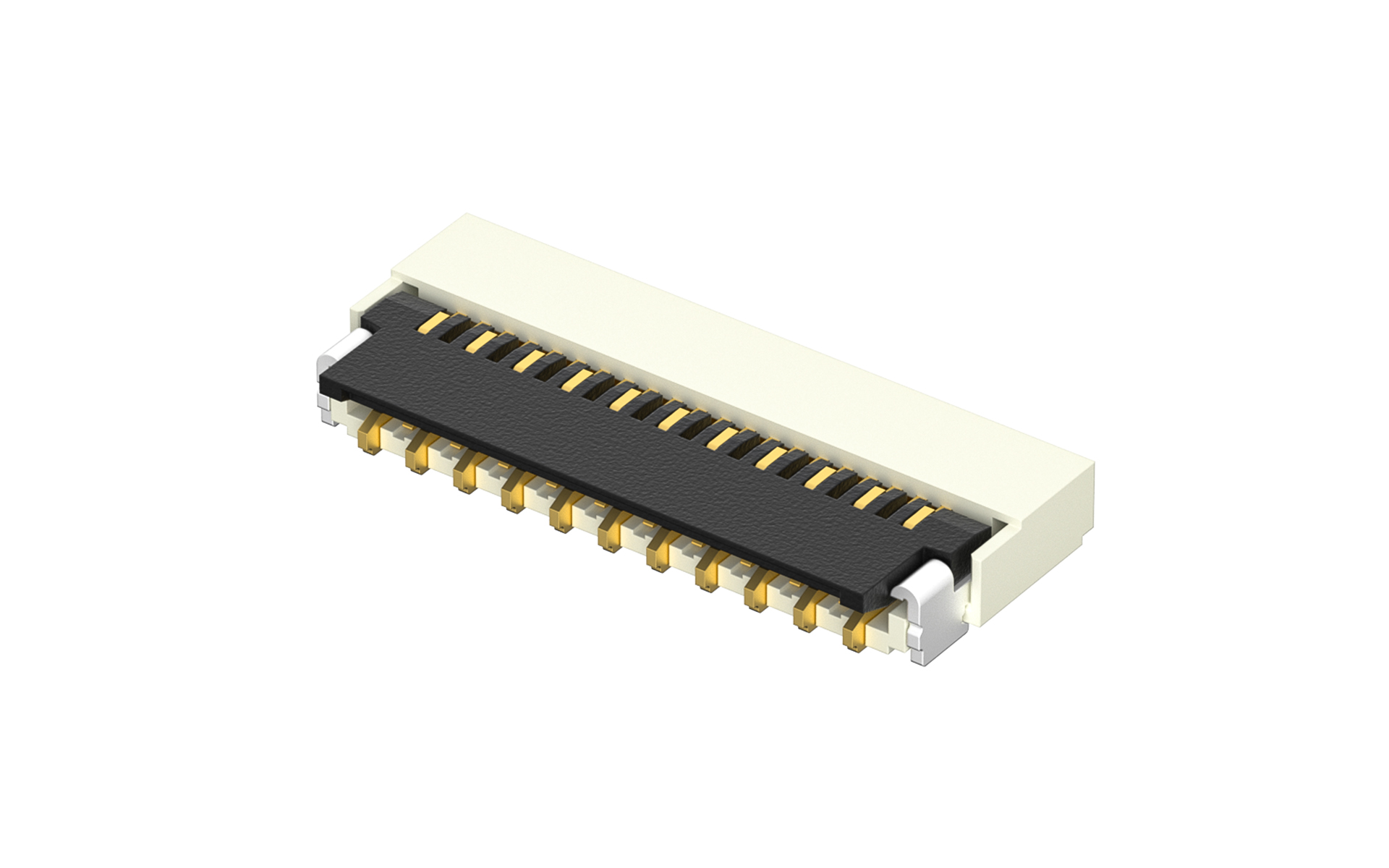

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{1.87091|tradeCurrencySymbol({digits:6})}}
10+ {{1.759919|tradeCurrencySymbol({digits:6})}}
50+ {{1.537936|tradeCurrencySymbol({digits:6})}}
100+ {{1.426945|tradeCurrencySymbol({digits:6})}}
500+ {{1.204962|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 3928
Lead time Ship Immediately
MOQ 5000
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.3mm
Number of Positions
31Circuits
Contact Mating Location
Bottom contact
Height(mm)
H1
Orientation
Right angle(90°)
Colour
Natural
Current(Max)
0.2A
Voltage(Max)
30V
Contact Resistance
20 mΩ Max
Insulation Resistance
50 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
ZIF
ZIF
ZIF Style
Front flip
Mounting Style
SMT
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Reel

Product Drawings

Drawing-FFC03001.pdf
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
