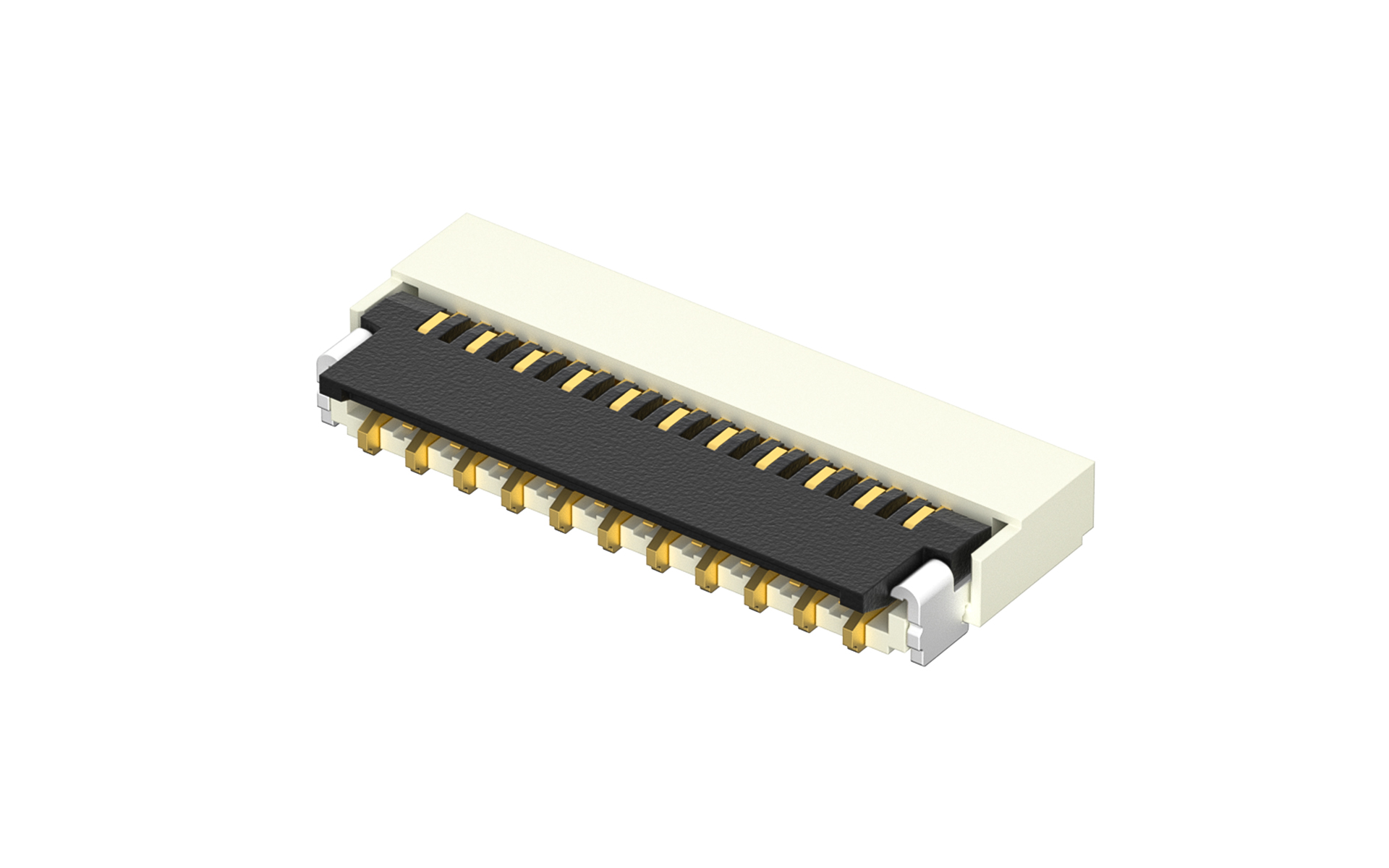

FPC/FFC连接器 0.3mm 卧贴下触点 45位(1mm)(掀锁)(金)
FFC03001-45SBB114W5M
FPC/FFC connector 0.3mm Lower Contact 45Circuits(1mm)(SMT)
FFC03001-45SBB114W5M Copy
Share this product
Stock(pcs)
16836
Lead time

≦ 16836 In stock

＞ 16836 Estimated delivery date 2025-12-29

MPQ
5000
MOQ
5000
Quantity Unit Price
1 $0.731912
10 $0.691295
50 $0.610061
100 $0.569444
500 $0.488210
1000 $0.390030
2500 $0.384651
5000 $0.379271
10000 $0.373891
25000 $0.368511

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.3mm
Number of Positions
45Circuits
Contact Mating Location
Bottom contact
Height(mm)
H1
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.2A
Voltage(Max)
30V
Contact Resistance
20 mΩ Max
Insulation Resistance
50 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Front flip
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

Drawing-FFC03001.pdf
