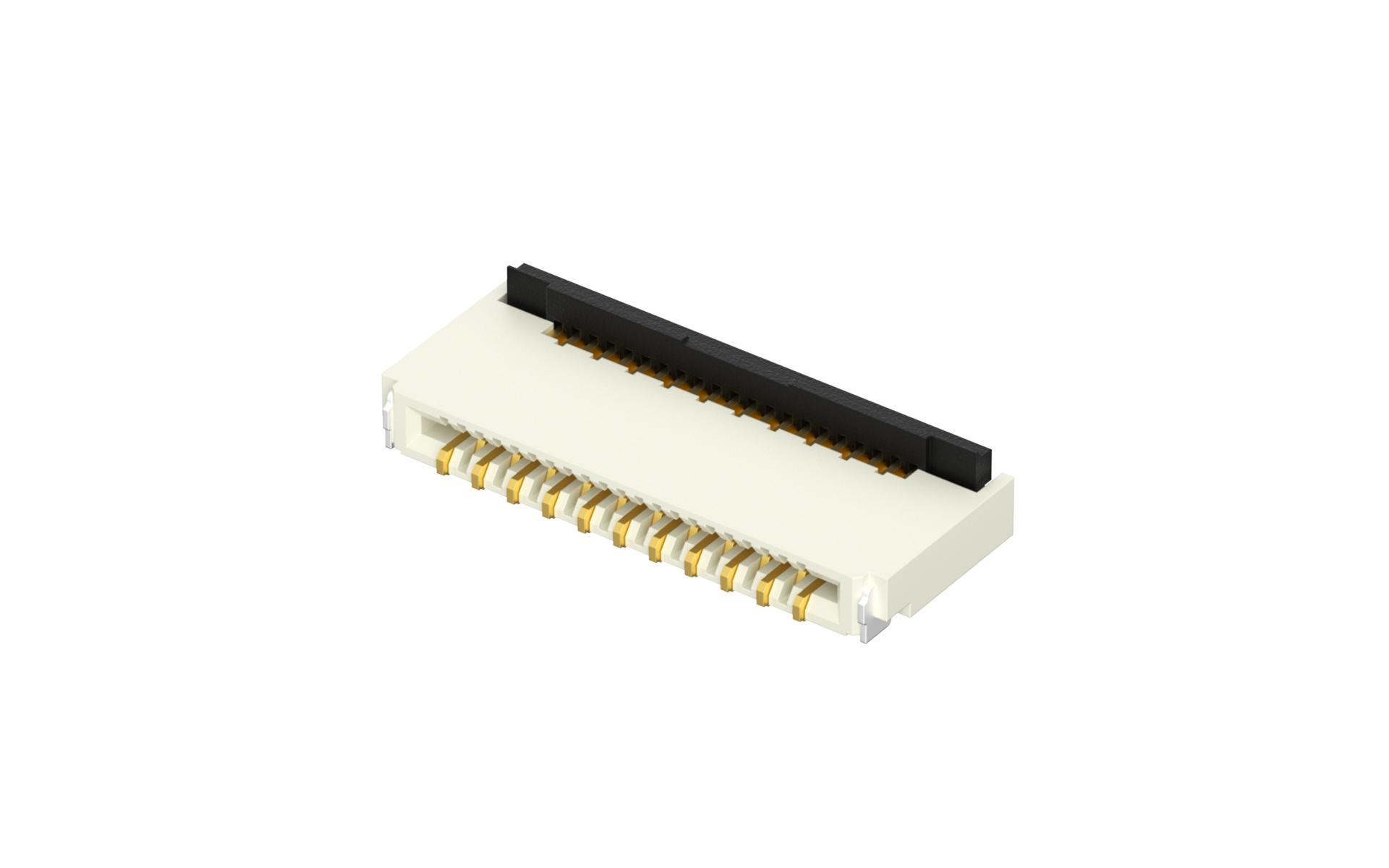

FPC/FFC连接器 0.3mm 卧贴双触点 15位(1mm)(后锁)(金)
FFC03009-15SBD113W5M
FPC/FFC connector 0.3mm Double Contact 15Circuits(1mm)(SMT)
FFC03009-15SBD113W5M Copy
Share this product
Stock(pcs)
1
Lead time

≦ 1 In stock

＞ 1 Estimated delivery date 2025-06-05

MPQ
1000
MOQ
1
Quantity Unit Price
1 $0.465878
10 $0.439383
50 $0.386394
100 $0.359899
500 $0.306910
1000 $0.239439
2500 $0.236148
5000 $0.232857
10000 $0.229565
25000 $0.226274
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.3mm
Number of Positions
15Circuits
Contact Mating Location
Double contact
Height(mm)
H1
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.3A
Voltage(Max)
30V
Contact Resistance
20 mΩ Max
Insulation Resistance
50 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Back flip
Mounting Style
SMT
Material
Material-Contact
Copper alloy
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FFC03009Series.pdf
