FPC/FFC连接器 0.3mm 卧贴双触点 21位(1mm)(后锁)(金)
FFC03009-21SBD113W5M

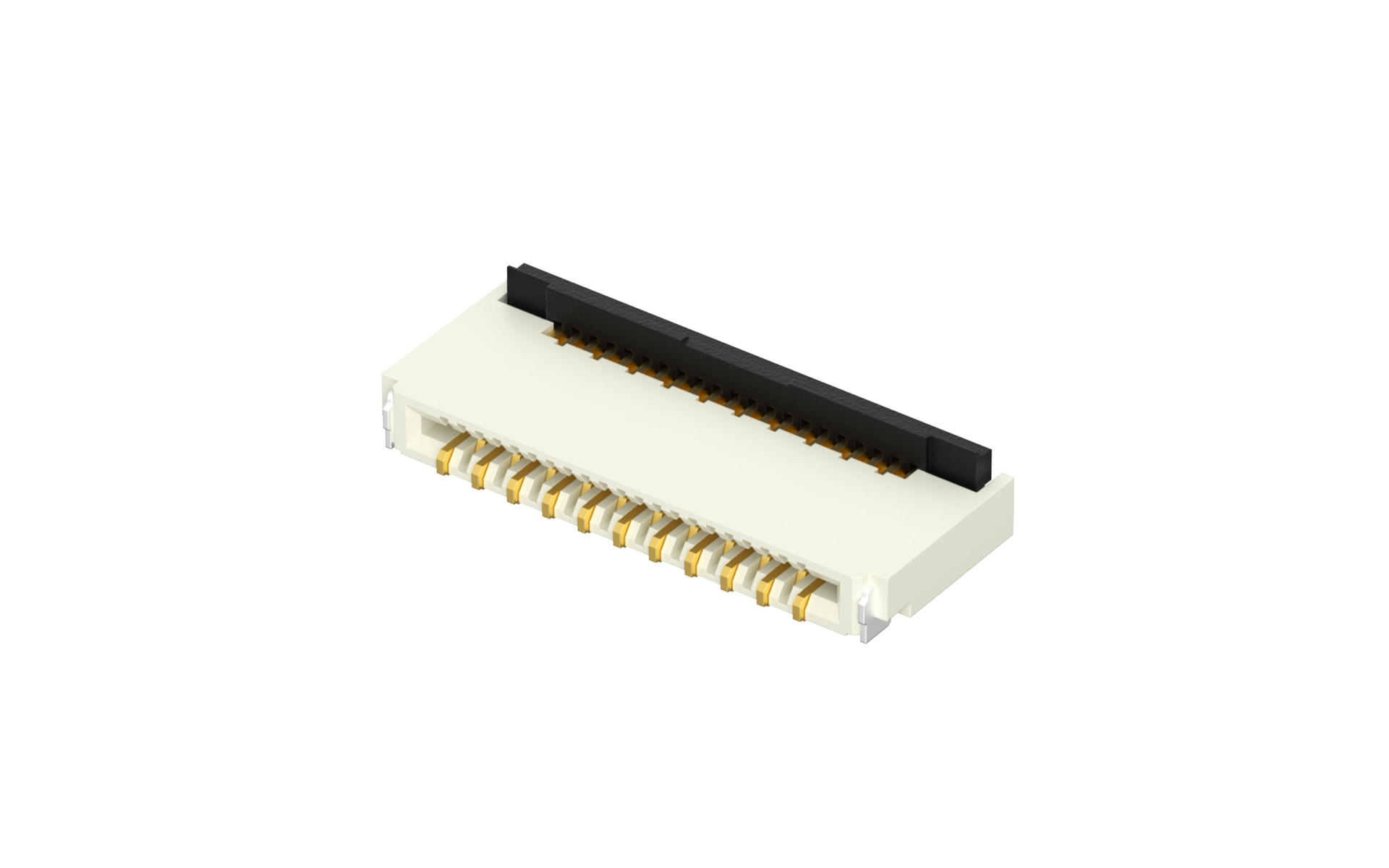

FPC/FFC connector 0.3mm Double Contact 21Circuits(1mm)(SMT)
FFC03009-21SBD113W5M Copy
Share this product
Stock(pcs)
2550
Lead time

≦ 2550 In stock

＞ 2550 Estimated delivery date 2025-12-29

MPQ
5000
MOQ
1
Quantity Unit Price
1 $0.355157
10 $0.334959
50 $0.294563
100 $0.274365
500 $0.233969
1000 $0.182534
2500 $0.180025
5000 $0.177516
10000 $0.175006
25000 $0.172498

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.3mm
Number of Positions
21Circuits
Contact Mating Location
Double contact
Height(mm)
H1
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.3A
Voltage(Max)
30V
Contact Resistance
20 mΩ Max
Insulation Resistance
50 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Back flip
Mounting Style
SMT
Material
Material-Contact
Copper alloy
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FFC03009Series.pdf

Instruction Documents

Operational Standards
