FPC/FFC连接器 0.3mm 卧贴双触点 35位(1mm)(后锁)(金)

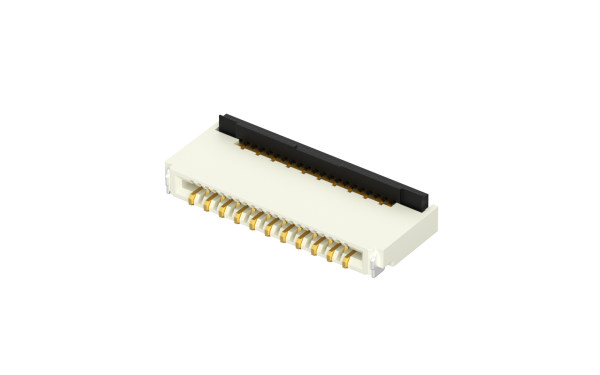

FFC03009-35SBD113W5M
FPC/FFC connector 0.3mm Double Contact 35Circuits(1mm)(SMT)
FFC03009-35SBD113W5M Copy
Share this product
Stock(pcs)
365
Lead time

≦ 365 In stock

＞ 365 Estimated delivery date 2025-12-26

MPQ
5000
MOQ
1
Quantity Unit Price
1 $0.555227
10 $0.523651
50 $0.460499
100 $0.428923
500 $0.365771
1000 $0.285360
2500 $0.281438
5000 $0.277515
10000 $0.273593
25000 $0.269670

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.3mm
Number of Positions
35Circuits
Contact Mating Location
Double contact
Height(mm)
H1
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.3A
Voltage(Max)
30V
Contact Resistance
20 mΩ Max
Insulation Resistance
50 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Back flip
Mounting Style
SMT
Material
Material-Contact
Copper alloy
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FFC03009Series.pdf
