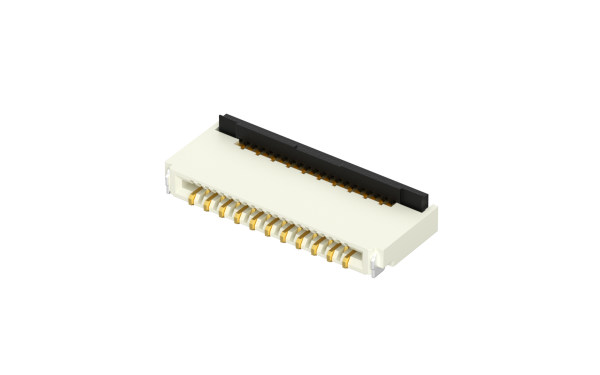

FPC/FFC连接器 0.3mm 卧贴双触点 39位(1mm)(后锁)(金)
FFC03009-39SBD113W5M
FPC/FFC connector 0.3mm Double Contact 39Circuits(1mm)(SMT)
FFC03009-39SBD113W5M Copy
Share this product
Stock(pcs)
165
Lead time

≦ 165 In stock

＞ 165 Estimated delivery date 2025-12-29

MPQ
5000
MOQ
1
Quantity Unit Price
1 $0.461443
10 $0.435200
50 $0.382716
100 $0.356473
500 $0.303988
1000 $0.237160
2500 $0.233900
5000 $0.230640
10000 $0.227380
25000 $0.224120

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.3mm
Number of Positions
39Circuits
Contact Mating Location
Double contact
Height(mm)
H1
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.3A
Voltage(Max)
30V
Contact Resistance
20 mΩ Max
Insulation Resistance
50 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Back flip
Mounting Style
SMT
Material
Material-Contact
Copper alloy
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FFC03009Series.pdf

Instruction Documents

Operational Standards
