FFC05001-30SBB113W5M
FFC/FPC连接器 0.5mm 30pins 抽屉式 下触点 米白色 H:2.0mm 镀金 LCP
FFC/FPC Connector 0.5mm 30pins Lower contact H:2.0mm Gold Plated
Product Number：FFC05001-30SBB113W5M
Production Status： Discontinued

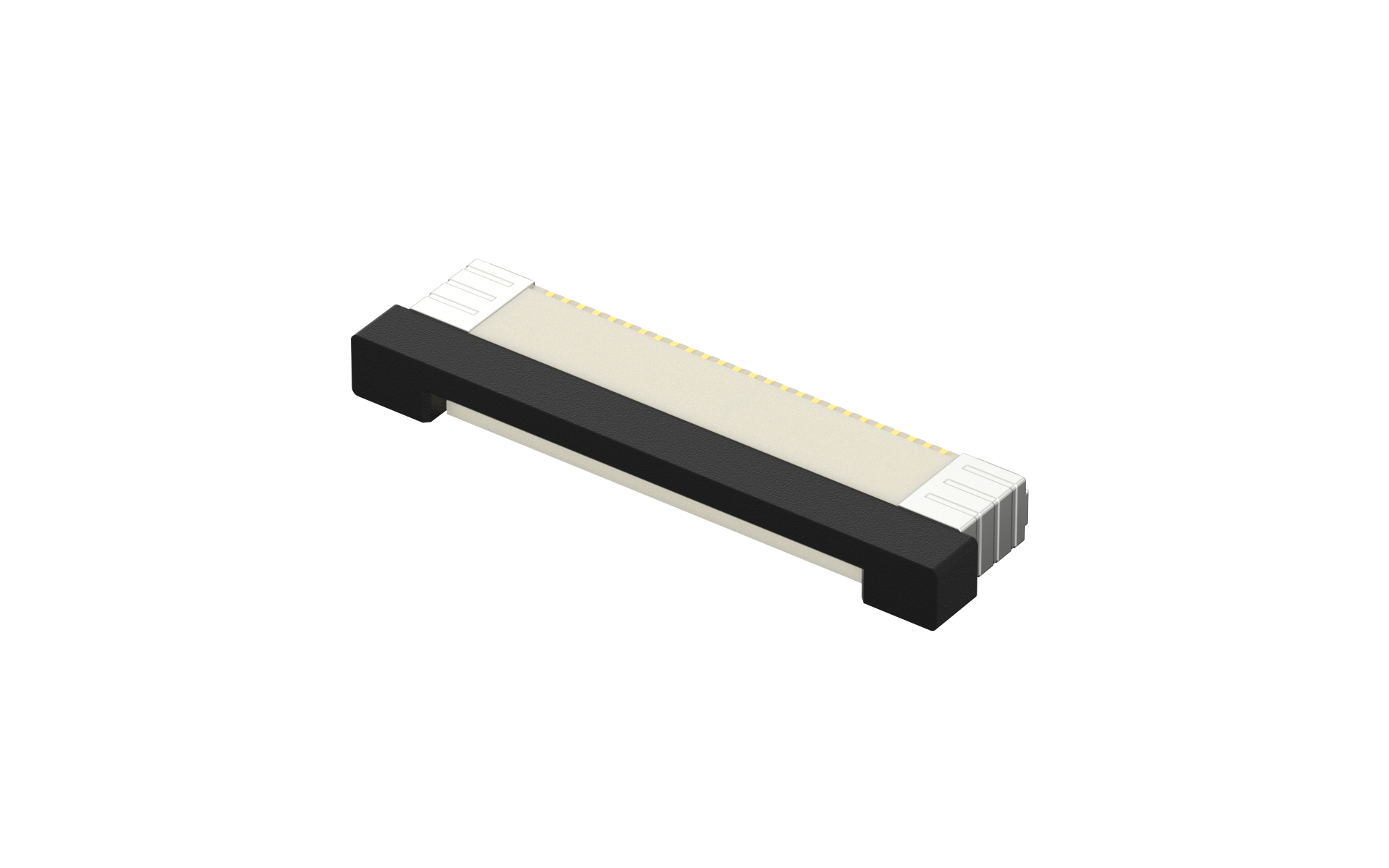

FFC/FPC Connector 0.5mm 30pins Lower contact H:2.0mm Gold Plated
FFC/FPC Connector 0.5mm 30pins Lower contact H:2.0mm Gold Plated
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

视频加载失败，请稍后重试。

{{ videoIndex + 1 }} / {{ videos.length }}
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.5mm
Number of Positions
30Circuits
Contact Mating Location
Bottom contact
Height(mm)
H2
Orientation
Right angle(90°)
Colour
Natural
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
ZIF
ZIF
ZIF Style
Slider
Mounting Style
SMT
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Reel

Product Drawings

Drawing-FFC05001.pdf

Product Specifications

FFC05001_Specification.pdf English Version
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
