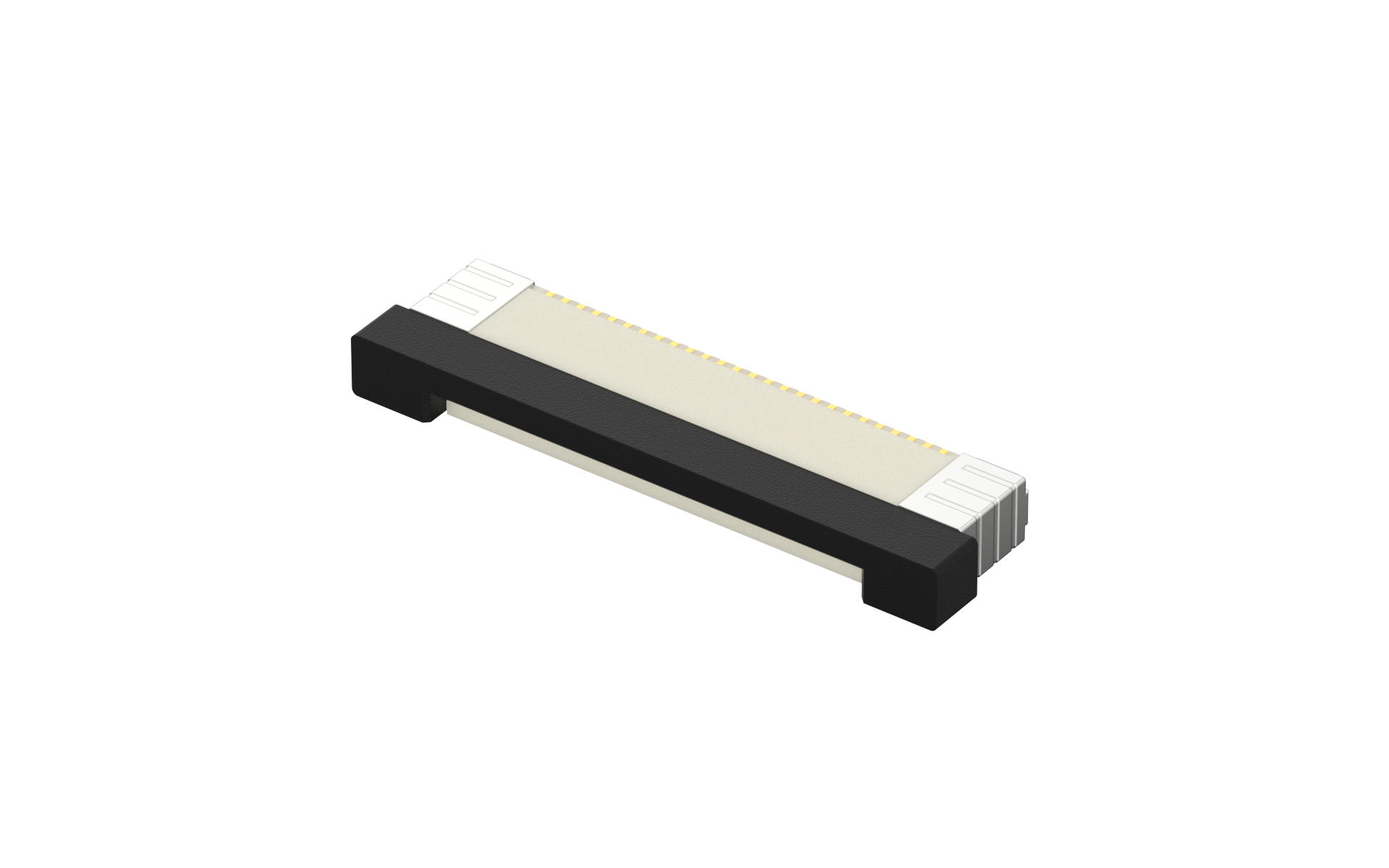

FPC/FFC连接器 0.5mm 卧贴下触点 40位(2mm)(抽锁)(金)
FFC05001-40SBB114W5M
FPC/FFC connector 0.5mm Lower contact 40Circuits(2mm)(SMT)
FFC05001-40SBB114W5M Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-06-05
MPQ
2000
MOQ
1
Quantity Unit Price
1 $0.492182
10 $0.464191
50 $0.408210
100 $0.380220
500 $0.324239
1000 $0.252958
2500 $0.249481
5000 $0.246004
10000 $0.242527
25000 $0.239050
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.5mm
Number of Positions
40Circuits
Contact Mating Location
Bottom contact
Height(mm)
H2
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Slider
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

Drawing-FFC05001.pdf

Product Specifications

FFC05001_Specification.pdf
