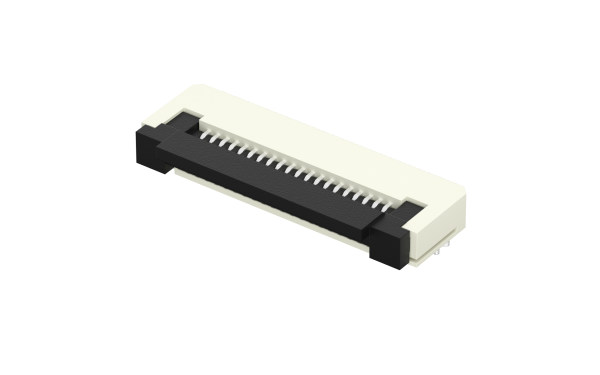

FFC05011-08SBB124W5M FPC/FFC connector 0.5mm Lower Contact 8Circuits(2mm)(SMT)

FFC05011-08SBB124W5M

FPC/FFC connector 0.5mm Lower Contact 8Circuits(2mm)(SMT)

Product Number：FFC05011-08SBB124W5M

Production Status： Active

FPC/FFC connector 0.5mm Lower Contact 8Circuits(2mm)(SMT)

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{1.087035\|tradeCurrencySymbol({digits:6})}}
10+	{{0.919798\|tradeCurrencySymbol({digits:6})}}
50+	{{0.766499\|tradeCurrencySymbol({digits:6})}}
100+	{{0.696817\|tradeCurrencySymbol({digits:6})}}
500+	{{0.613199\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 2534

Lead time Ship Immediately

MOQ 2000

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

FPC/FFC Connector

Style

Socket

Pitch

0.5mm

Number of Positions

8Circuits

Contact Mating Location

Bottom contact

Height(mm)

Orientation

Right angle(90°)

Colour

Natural

Current(Max)

0.5A

Voltage(Max)

50V

Contact Resistance

30 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

250V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

ZIF

ZIF Style

Front flip

Mounting Style

SMT

Material-Contact

Phosphor bronze

Plating

Matte tin plated

Material-Resin

PA9T

Flammability Rating

UL94 V-0

Packaging

Reel

Product Drawings

FFC05011series.pdf

3D Drawings

FFC05011-08SBB124W5M-REF .STEP

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
