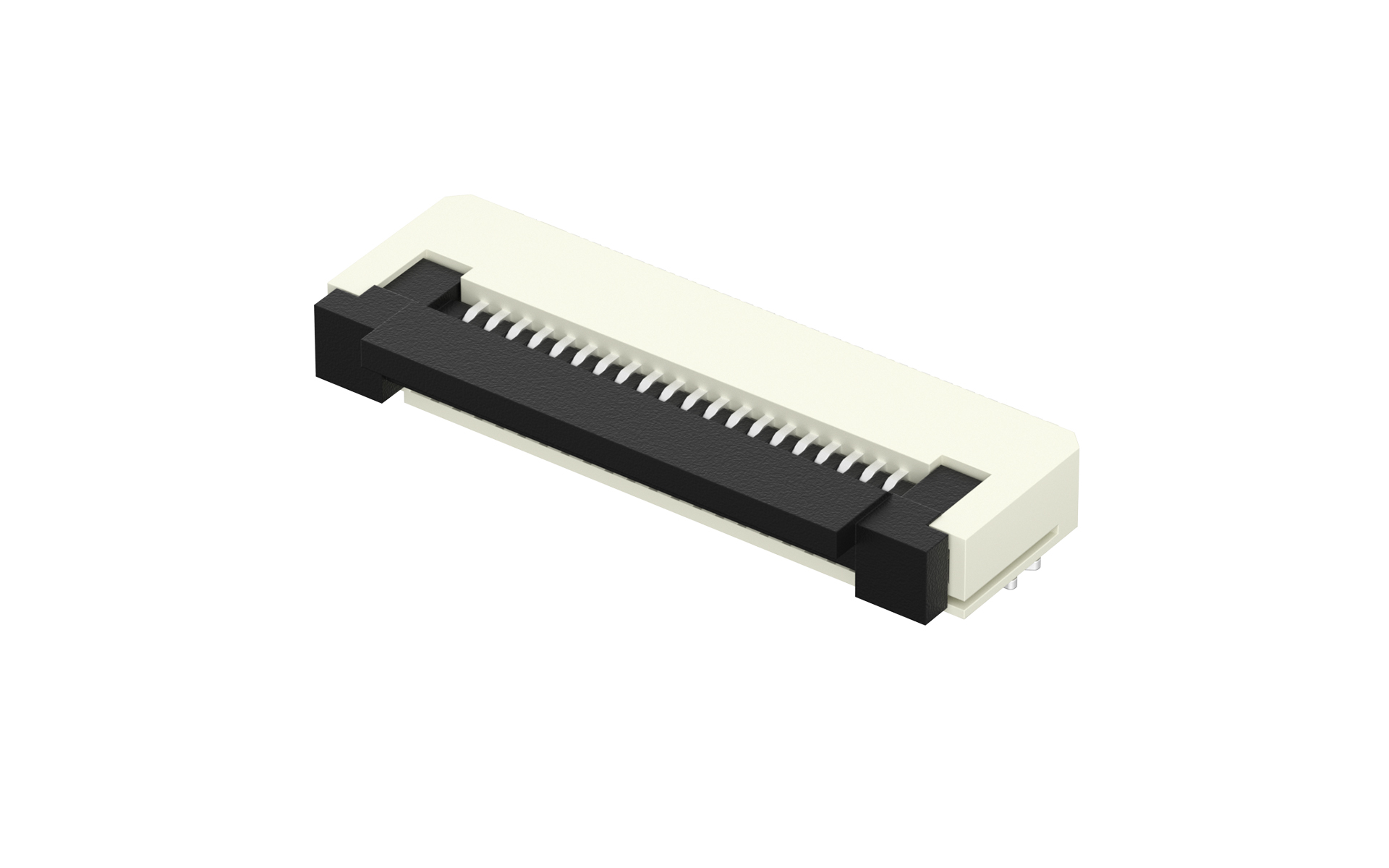

FPC/FFC连接器 0.5mm 卧贴下触点 18位(2mm)(掀锁)
FFC05011-18SBB124W5M
FPC/FFC connector 0.5mm Lower Contact 18Circuits(2mm)(SMT)
FFC05011-18SBB124W5M Copy
Share this product
Stock(pcs)
82
Lead time

≦ 82 In stock

＞ 82 Estimated delivery date 2025-07-01

MPQ
2000
MOQ
2000
Quantity Unit Price
1 $0.185819
10 $0.149144
50 $0.132029
100 $0.119804
500 $0.105623
1000 $0.071149
5000 $0.070171
10000 $0.069193
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.5mm
Number of Positions
18Circuits
Contact Mating Location
Bottom contact
Height(mm)
H2
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
30 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Front flip
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Matte tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FFC05011series.pdf
