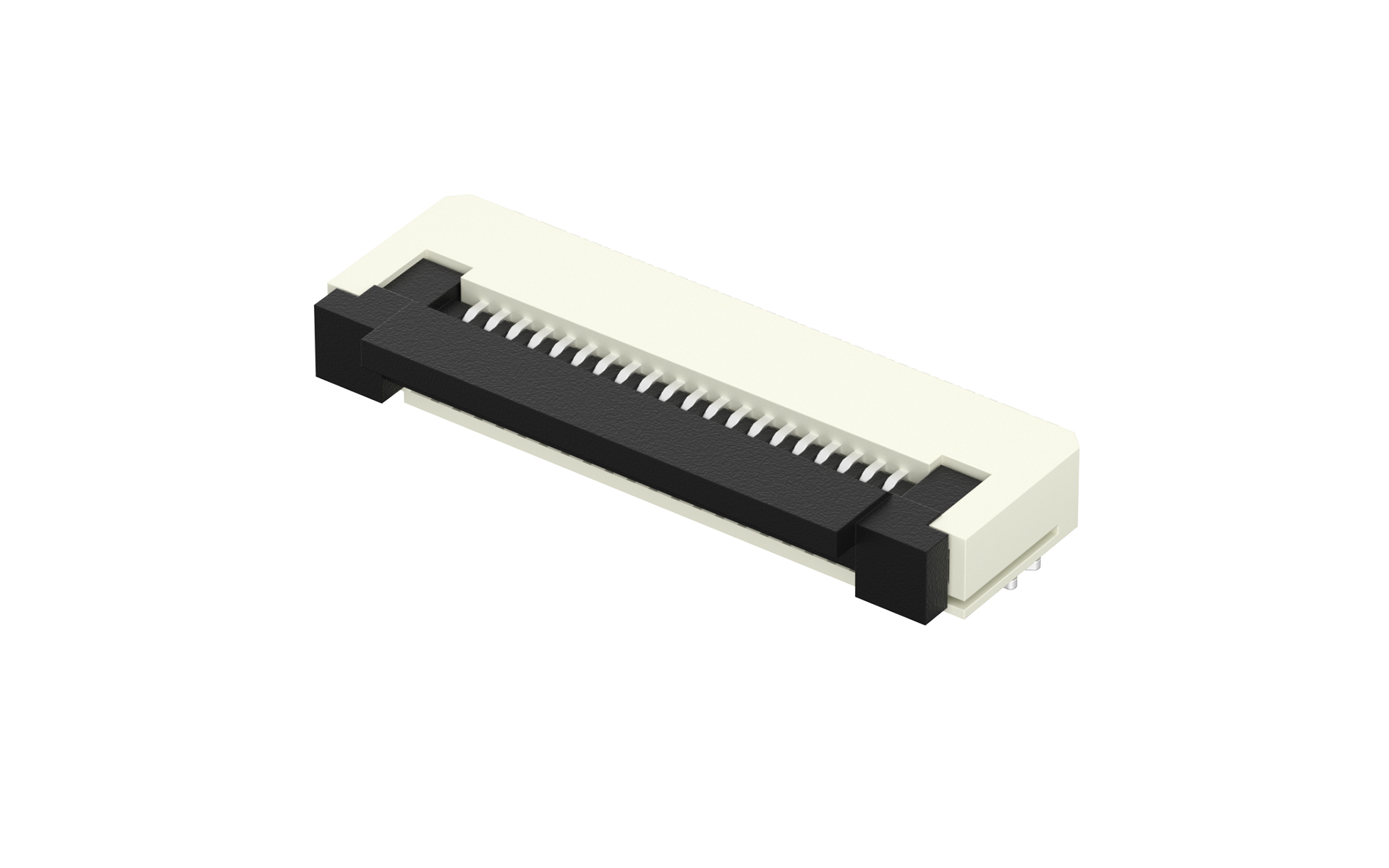

FPC/FFC连接器 0.5mm 卧贴下触点 20位(2mm)(掀锁)
FFC05011-20SBB124W5M
FPC/FFC connector 0.5mm Lower Contact 20Circuits(2mm)(SMT)
FFC05011-20SBB124W5M Copy
Share this product
Stock(pcs)
1355
Lead time

≦ 1355 In stock

＞ 1355 Estimated delivery date 2025-12-26

MPQ
2000
MOQ
2000
Quantity Unit Price
1 $0.200144
10 $0.160642
50 $0.142208
100 $0.129040
500 $0.113766
1000 $0.076634
5000 $0.075581
10000 $0.074527

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.5mm
Number of Positions
20Circuits
Contact Mating Location
Bottom contact
Height(mm)
H2
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
30 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Front flip
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Matte tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FFC05011series.pdf

3D Drawings

FFC05011-20SBB124W5M-REF
