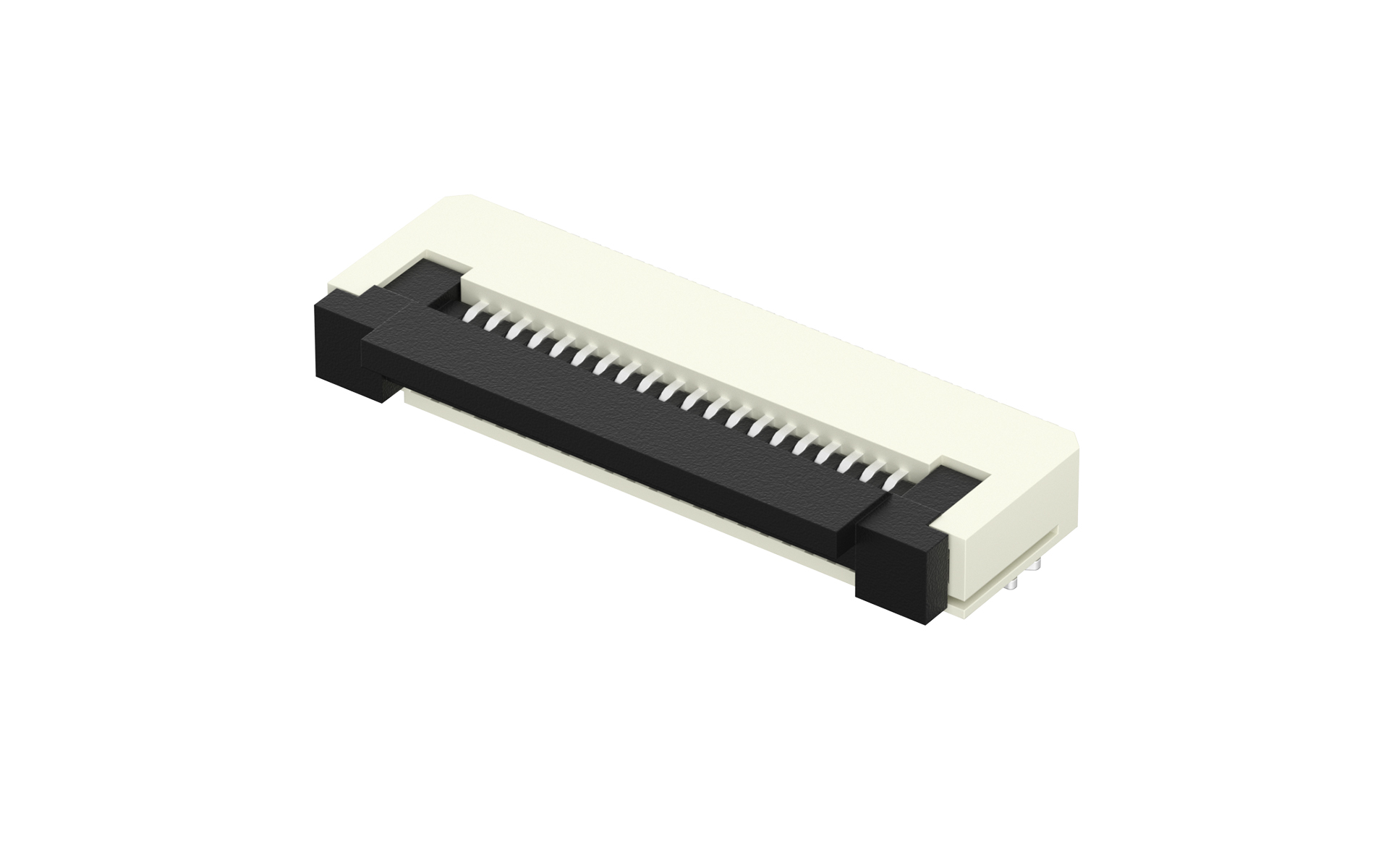

FPC/FFC连接器 0.5mm 卧贴下触点 24位(2mm)(掀锁)
FFC05011-24SBB124W5M
FPC/FFC connector 0.5mm Lower Contact 24Circuits(2mm)(SMT)
FFC05011-24SBB124W5M Copy
Share this product
Stock(pcs)
85
Lead time

≦ 85 In stock

＞ 85 Estimated delivery date 2025-10-14

MPQ
2000
MOQ
1
Quantity Unit Price
1 $0.236772
10 $0.190041
50 $0.168233
100 $0.152656
500 $0.134586
1000 $0.090659
5000 $0.089413
10000 $0.088167

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.5mm
Number of Positions
24Circuits
Contact Mating Location
Bottom contact
Height(mm)
H2
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
30 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Front flip
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Matte tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FFC05011series.pdf

3D Drawings

FFC05011-24SBB1X4W5M_REF
