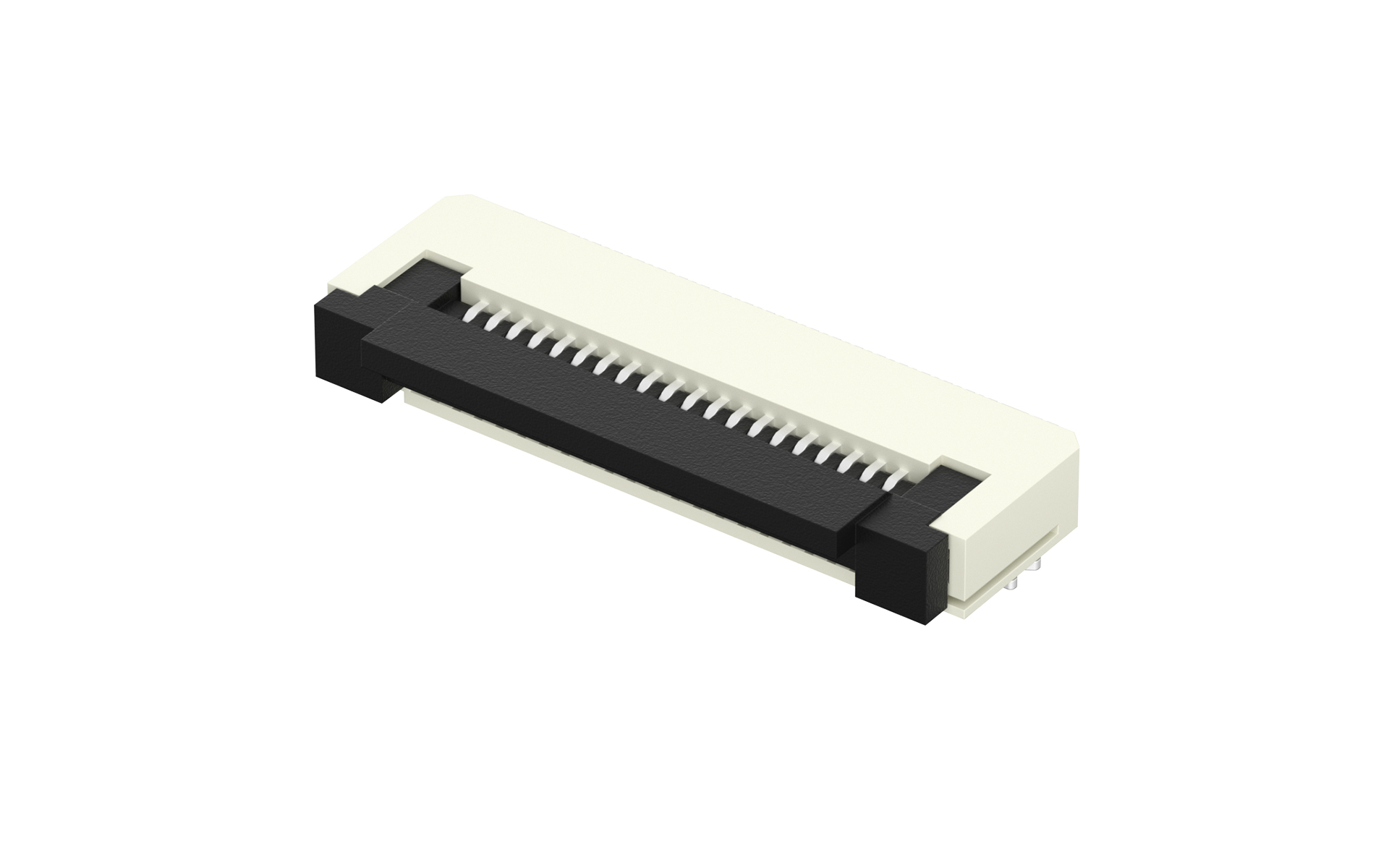

FPC/FFC连接器 0.5mm 卧贴下触点 30位(2mm)(掀锁)
FFC05011-30SBB124W5M
FPC/FFC connector 0.5mm Lower Contact 30Circuits(2mm)(SMT)
FFC05011-30SBB124W5M Copy
Share this product
Stock(pcs)
1698
Lead time

≦ 1698 In stock

＞ 1698 Estimated delivery date 2025-07-01

MPQ
2000
MOQ
1
Quantity Unit Price
1 $0.249324
10 $0.234533
50 $0.204951
100 $0.190160
500 $0.160578
1000 $0.119310
2500 $0.117675
5000 $0.116041
10000 $0.114406
25000 $0.112772
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.5mm
Number of Positions
30Circuits
Contact Mating Location
Bottom contact
Height(mm)
H2
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
30 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Front flip
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Matte tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FFC05011series.pdf

3D Drawings

FFC05011-30SBB124W5M-REF
