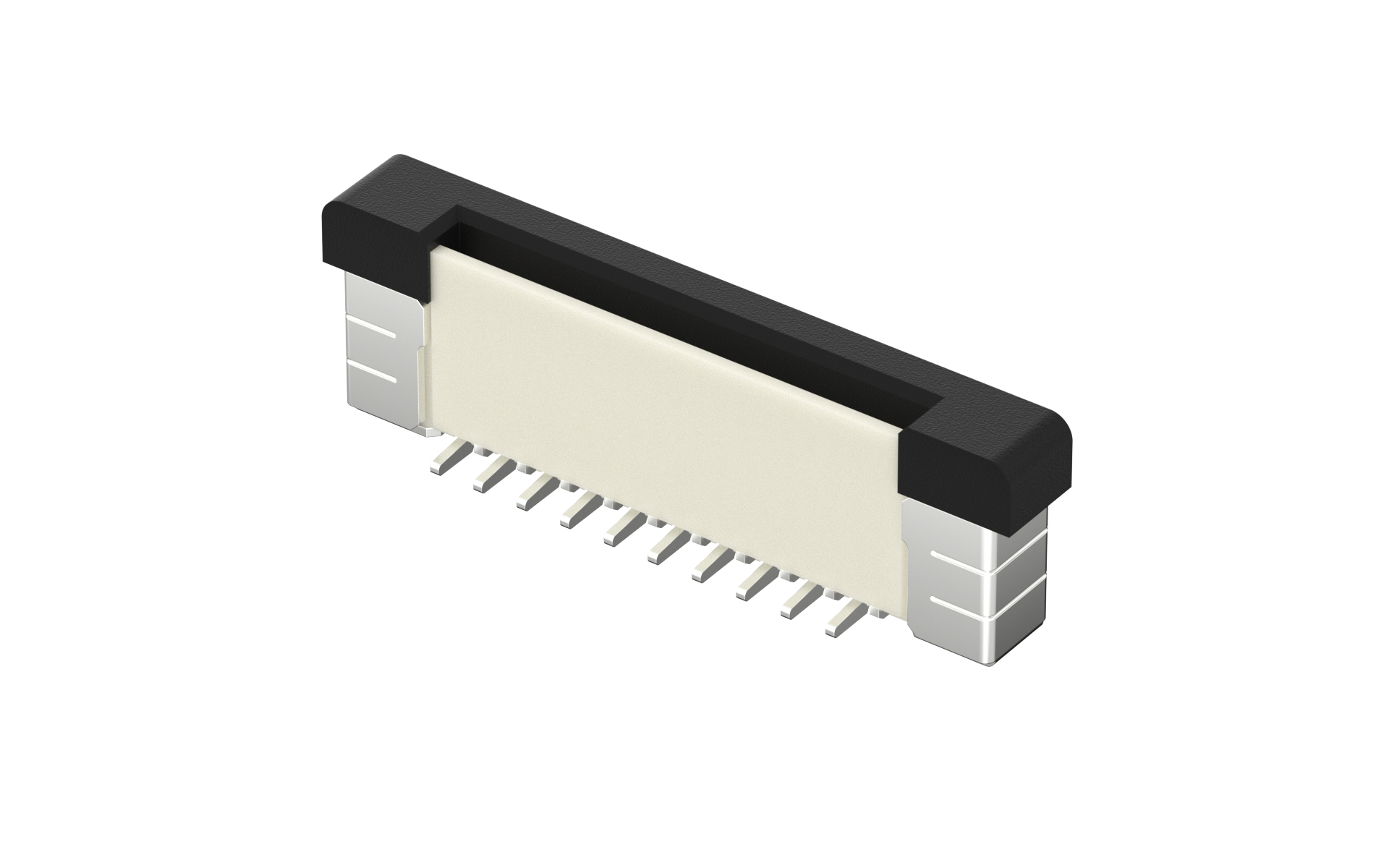

FPC/FFC连接器 0.5mm 立贴 22位
FFC05012-22SSA124W5M
FPC/FFC connector 0.5mm 22Circuits(SMT)
FFC05012-22SSA124W5M Copy
Share this product
Stock(pcs)
960
Lead time

≦ 960 In stock

＞ 960 Estimated delivery date 2025-08-15

MPQ
1000
MOQ
1
Quantity Unit Price
1 $0.183790
10 $0.172887
50 $0.151080
100 $0.140177
500 $0.118370
1000 $0.087949
2500 $0.086745
5000 $0.085540
10000 $0.084335
25000 $0.083130
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.5mm
Number of Positions
22Circuits
Pin Position
Positive pin
Height(mm)
H4.8
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Slider
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Matte tin plated
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FFC05012 Series

Product Specifications

FFC05012Productspecification.pdf
