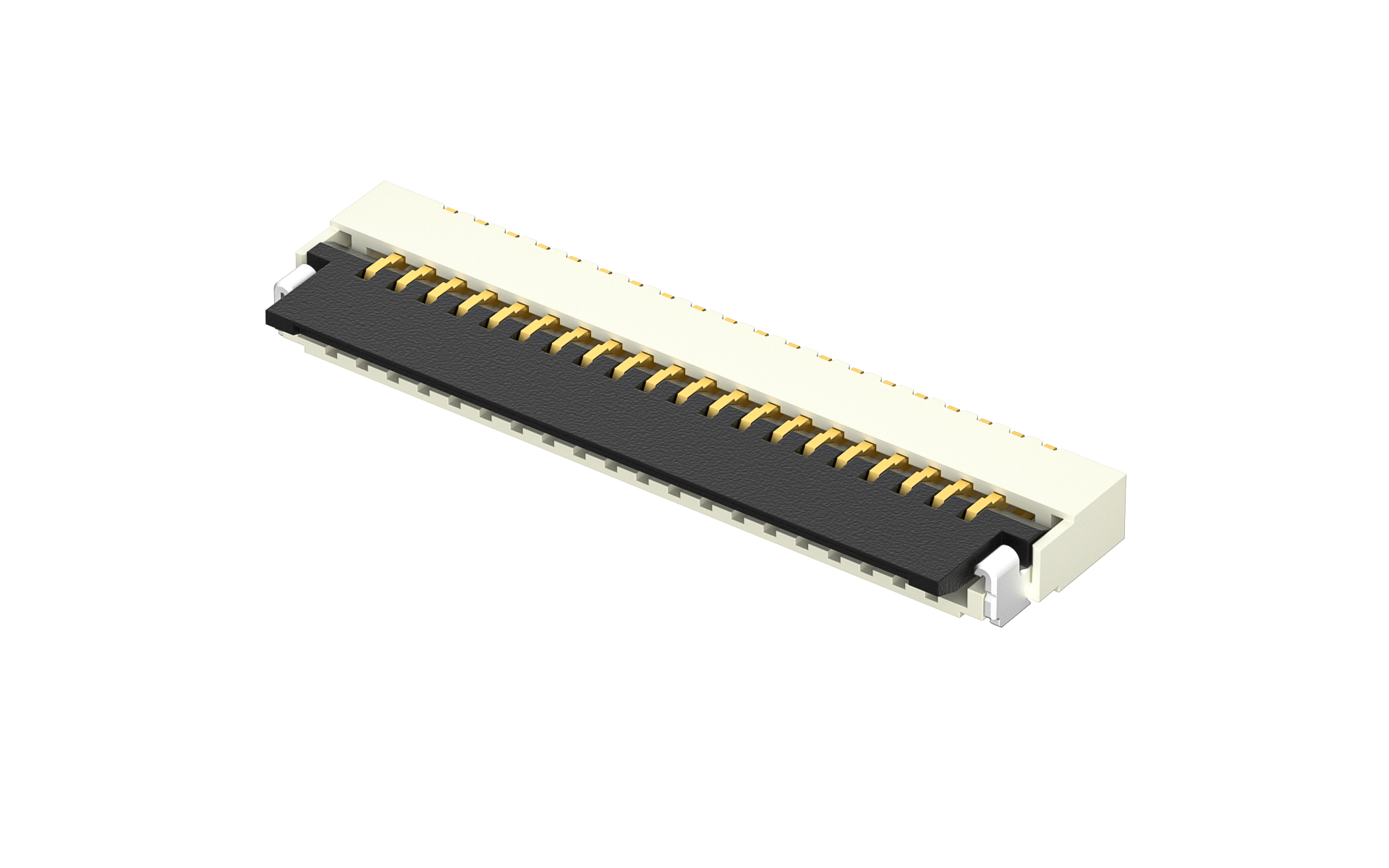

FPC/FFC连接器 0.5mm 卧贴下触点 40位(H1)(掀锁)(金)
FFC05013-40SBB114W5M
FPC/FFC connector 0.5mm Lower Contact 40Circuits(H1)(SMT)
FFC05013-40SBB114W5M Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-10-14
MPQ
5000
MOQ
5000
Quantity Unit Price
1 $0.292472
10 $0.275839
50 $0.242573
100 $0.225940
500 $0.192674
1000 $0.150317
2500 $0.148251
5000 $0.146184
10000 $0.144118
25000 $0.142052

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.5mm
Number of Positions
40Circuits
Contact Mating Location
Bottom contact
Height(mm)
H1
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Front flip
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FFC05013Series.pdf
