FFC05036-12SBD113W5M FPC/FFC connector 0.5mm Double Contact 12Circuits(H2)(SMT)

FFC05036-12SBD113W5M

FPC/FFC connector 0.5mm Double Contact 12Circuits(H2)(SMT)

Product Number：FFC05036-12SBD113W5M

Production Status： Active

FPC/FFC connector 0.5mm Double Contact 12Circuits(H2)(SMT)

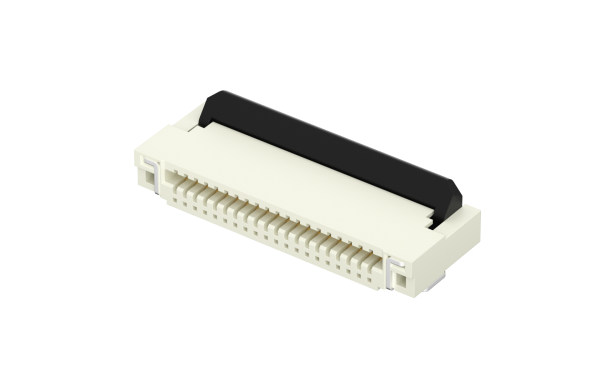

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{1.465318\|tradeCurrencySymbol({digits:6})}}
10+	{{1.378389\|tradeCurrencySymbol({digits:6})}}
50+	{{1.204529\|tradeCurrencySymbol({digits:6})}}
100+	{{1.117599\|tradeCurrencySymbol({digits:6})}}
500+	{{0.94374\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 1508

Lead time Ship Immediately

MOQ 1500

MPQ 13500

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

FPC/FFC Connector

Style

Socket

Pitch

0.5mm

Number of Positions

12Circuits

Contact Mating Location

Double contact

Height(mm)

Orientation

Right angle(90°)

Colour

Natural

Current(Max)

0.5A

Voltage(Max)

50V

Contact Resistance

30 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

200V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

ZIF

ZIF Style

Back flip

Mounting Style

SMT

Material-Contact

Copper alloy

Plating

Gold plated

Material-Resin

LCP

Flammability Rating

UL94 V-0

Packaging

Reel

Product Drawings

FFC05036 Series.pdf

3D Drawings

FFC05036-12SBD113W5M-REF.STEP

Product Specifications

FFC05036Productspecification.pdf English Version

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
