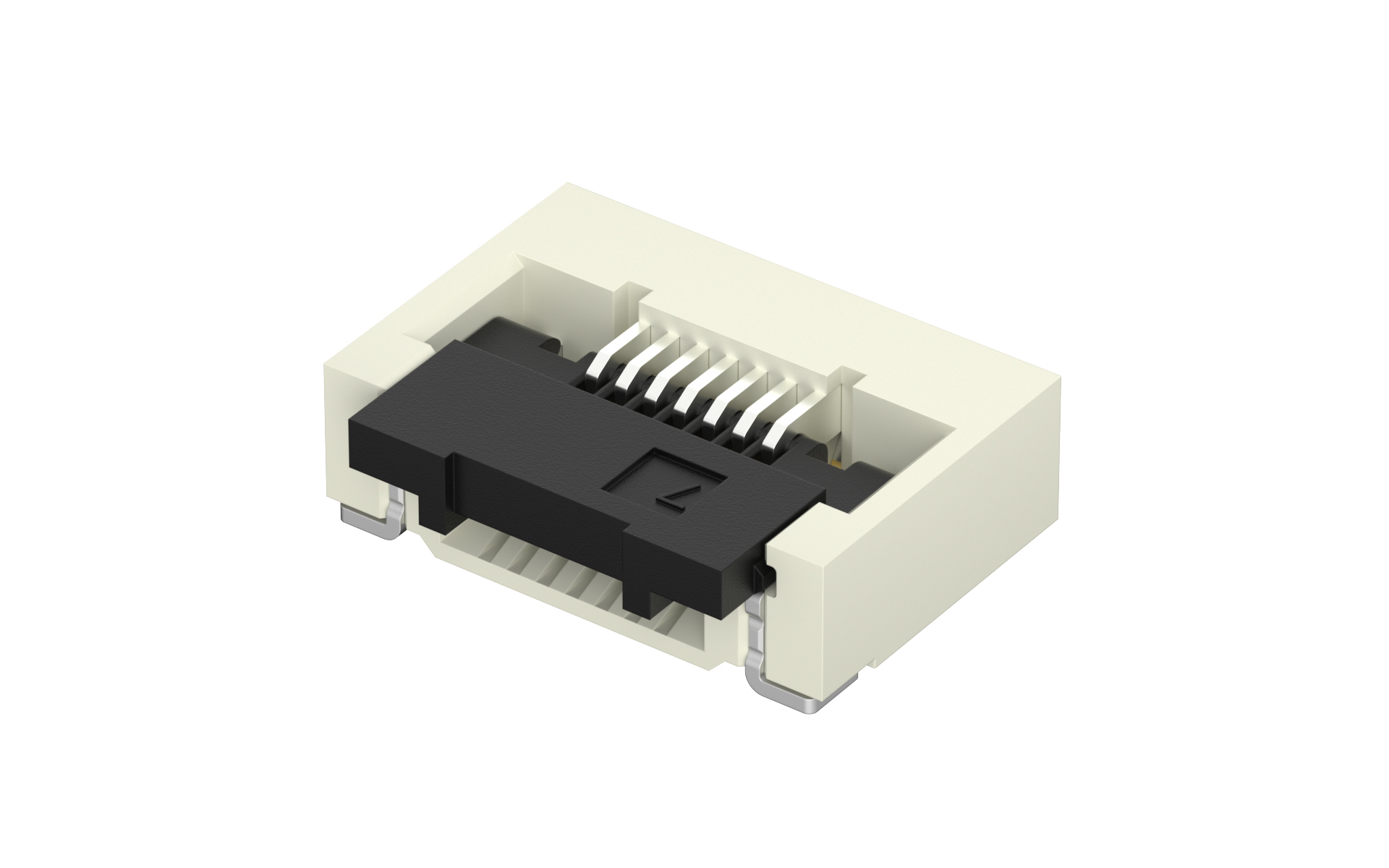

FFC05046-07SBB113NAM FPC/FFC Connector, 0.5mm, 7 Circuits, Right angle(90°), SMT, Bottom contact , Front flip, H2.55

FFC05046-07SBB113NAM

FPC/FFC连接器,0.5mm,7位,直角(90度),表面贴装,下触点 ,前掀锁,H2.55(蝴蝶扣)

FPC/FFC Connector, 0.5mm, 7 Circuits, Right angle(90°), SMT, Bottom contact , Front flip, H2.55

Product Number：FFC05046-07SBB113NAM

Production Status： Active

FPC/FFC Connector, 0.5mm, 7 Circuits, Right angle(90°), SMT, Bottom contact , Front flip, H2.55

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{1.628664\|tradeCurrencySymbol({digits:6})}}
10+	{{1.178638\|tradeCurrencySymbol({digits:6})}}
50+	{{1.02863\|tradeCurrencySymbol({digits:6})}}
100+	{{0.942911\|tradeCurrencySymbol({digits:6})}}
500+	{{0.797188\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 2000

MPQ 26000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

FPC/FFC Connector

Style

Socket

Pitch

0.5mm

Number of Positions

7Circuits

Contact Mating Location

Bottom contact

Height(mm)

H2.55

Orientation

Right angle(90°)

Colour

Natural

Current(Max)

0.5A

Voltage(Max)

50V

Contact Resistance

50 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

150V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

ZIF

ZIF Style

Front flip

Mounting Style

SMT

Material-Contact

Copper alloy

Plating

Gold plated

Material-Resin

LCP

Flammability Rating

UL94 V-0

Packaging

Reel

Product Drawings

FFC05046-XXSBB113NAM.pdf

3D Drawings

FFC05046-07SBB113NAM.stp

Product Specifications

EN_Spec FFC05046.pdf English Version

ZH_Spec FFC05046.pdf Chinese Version

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
