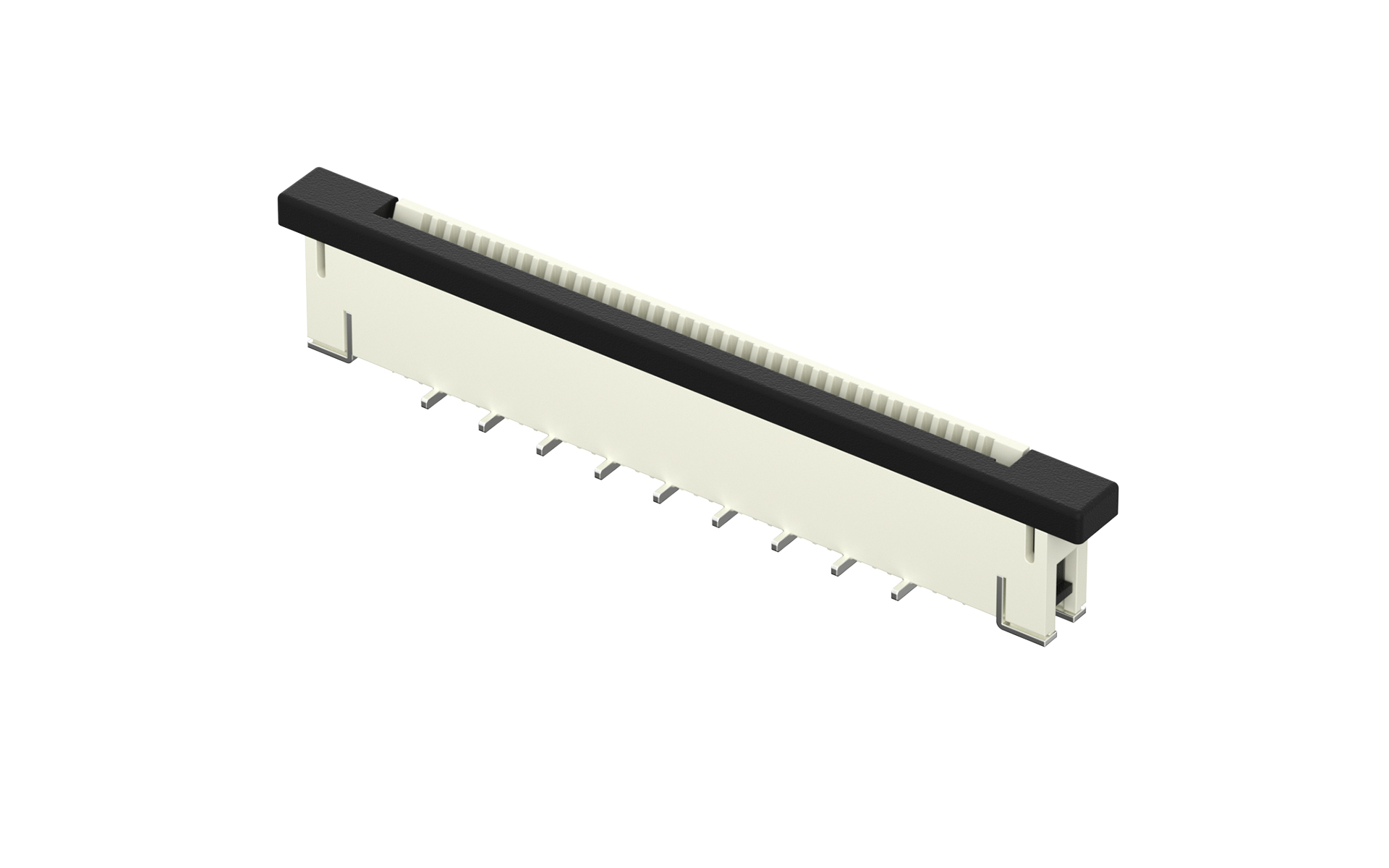

FFC10046-11SSA126W5M FPC/FFC connector 1mm 11Circuits(SMT)

FFC10046-11SSA126W5M

FPC/FFC connector 1mm 11Circuits(SMT)

Product Number：FFC10046-11SSA126W5M

Production Status： Active

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{2.797182\|tradeCurrencySymbol({digits:6})}}
10+	{{2.358956\|tradeCurrencySymbol({digits:6})}}
50+	{{2.013971\|tradeCurrencySymbol({digits:6})}}
100+	{{1.836816\|tradeCurrencySymbol({digits:6})}}
500+	{{1.613041\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 900

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

FPC/FFC Connector

Style

Socket

Pitch

1mm

Number of Positions

11Circuits

Pin Position

Positive pin

Height(mm)

H4.8

Orientation

Vertical(180°)

Colour

Natural

Current(Max)

0.5A

Voltage(Max)

50V

Contact Resistance

30 mΩ Max

Insulation Resistance

100 MΩ Min

Withstanding Voltage

250V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

ZIF

ZIF Style

Slider

Mounting Style

SMT

Material-Contact

Copper alloy

Plating

Matte tin plated

Material-Resin

PA46

Flammability Rating

UL94 V-0

Packaging

Reel

Product Drawings

FFC10046series.pdf

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
