FFC12516-04DBA221K6L
FPC/FFC连接器 1.25mm 90°插件 4位
FPC/FFC connector 1.25mm 4Circuits(DIP)
Product Number：FFC12516-04DBA221K6L
Production Status： Active
FPC/FFC connector 1.25mm 4Circuits(DIP)

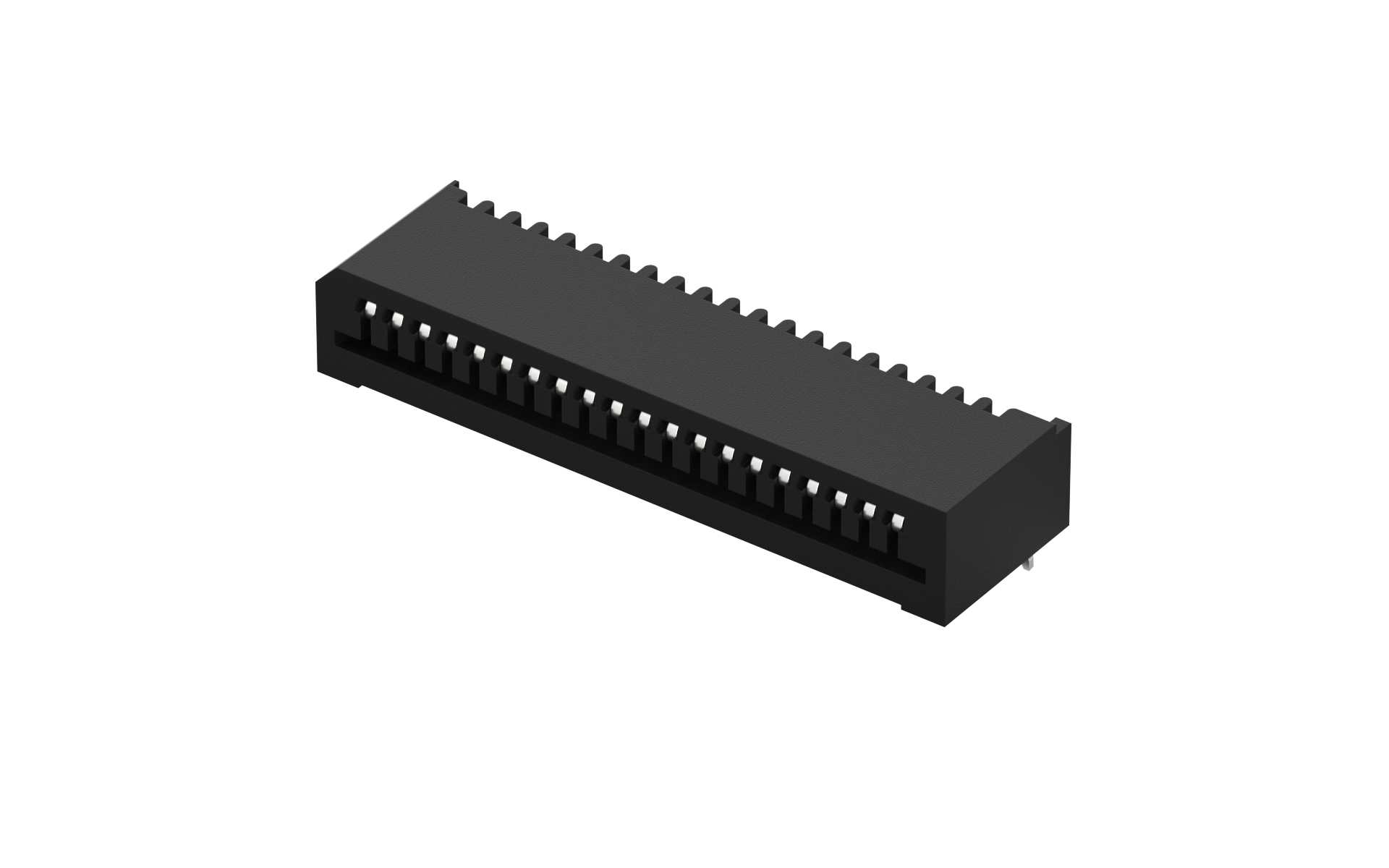

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{1.28014|tradeCurrencySymbol({digits:6})}}
10+ {{0.844892|tradeCurrencySymbol({digits:6})}}
50+ {{0.704077|tradeCurrencySymbol({digits:6})}}
100+ {{0.64007|tradeCurrencySymbol({digits:6})}}
500+ {{0.563261|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 25
Lead time Ship Immediately
MOQ 1022
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
1.25mm
Number of Positions
4Circuits
Pin Position
Positive pin
Height(mm)
H5
Orientation
Right angle(90°)
Colour
Black
Current(Max)
1A
Voltage(Max)
50V
Contact Resistance
30 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
ZIF
Non-ZIF
Mounting Style
Through hole
Material-Contact
Copper alloy
Plating
Bright tin plated
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Tube

Product Drawings

Drawing-FFC12516.pdf
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
