排母 1.27mm 立贴 双排 16位(6T)(H4.55)
FFH12716-D16S1004K6M

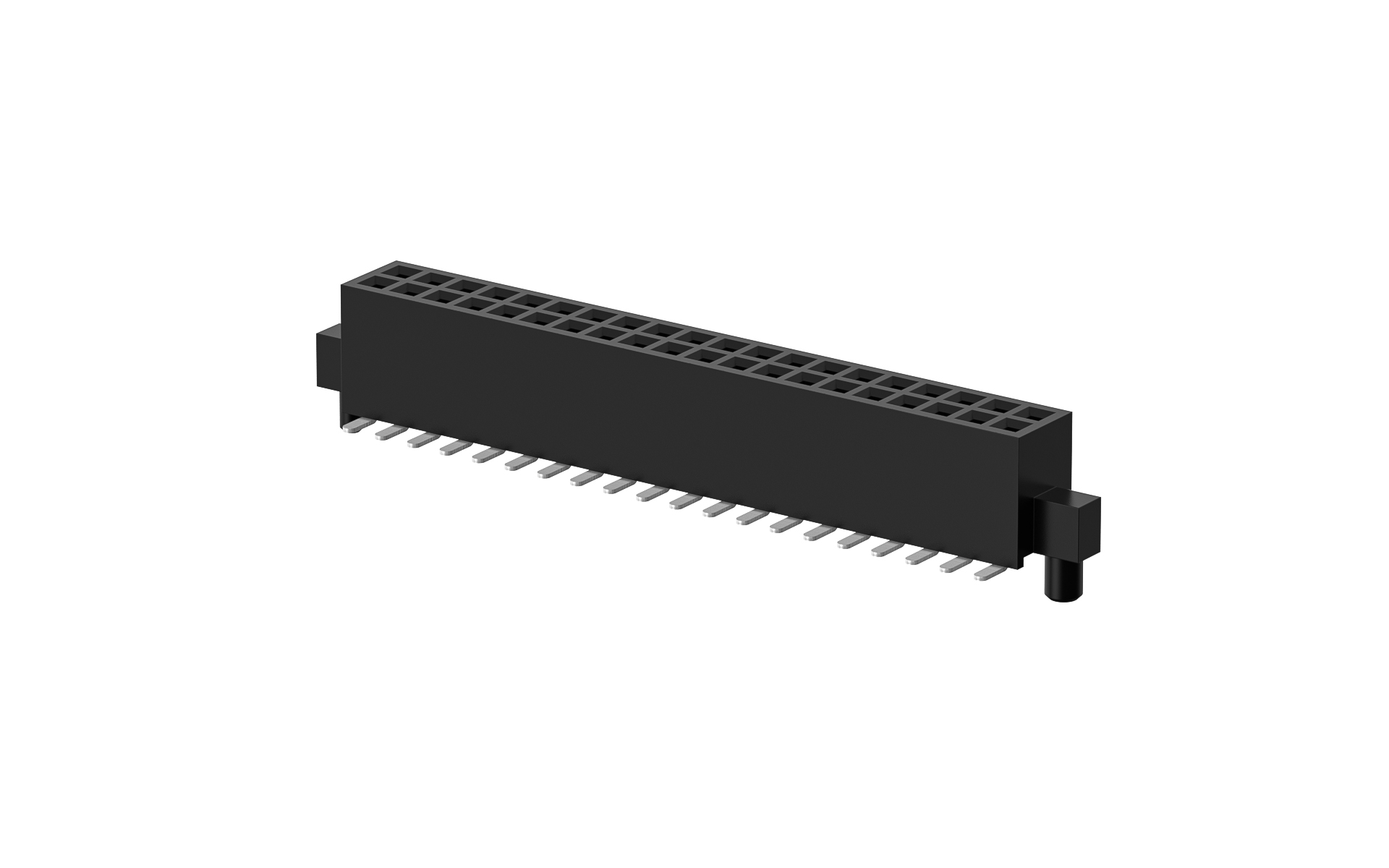

Female Header 1.27mm 180°Vertical Double Row 16Circuits(SMT)
FFH12716-D16S1004K6M Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-12-26
MPQ
20
MOQ
20
Quantity Unit Price
1 $0.295521
10 $0.277989
50 $0.242925
100 $0.225394
500 $0.190330
1000 $0.141416
2500 $0.139479
5000 $0.137541
10000 $0.135604
25000 $0.133667

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
1.27mm
Row Option
Dual row
Number of Positions
16Circuits
Peg
With peg
Height(mm)
H4.55
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FFH12716 Series
Receptacle
Box Header 1.27mm 90° Angle 16Circuits(DIP), PA9T

FBH12702-D16B1004K6K

Box Header 1.27mm 90° Angle 16Circuits(DIP), PA9T

 Box Header 1.27mm, 16Circuits, 90° Angle(DIP), 1μ", PA9T

FBH12702-D16B1014K6K

Box Header 1.27mm, 16Circuits, 90° Angle(DIP), 1μ", PA9T

 Box Header 1.27mm 180°Vertical 16Circuits(SMT)

FBH12714-D16S1004K6M

Box Header 1.27mm 180°Vertical 16Circuits(SMT)
