排母 1.27mm (H4.55) ,双排 ,40位 ,立贴 ,1μ" ,PA6T

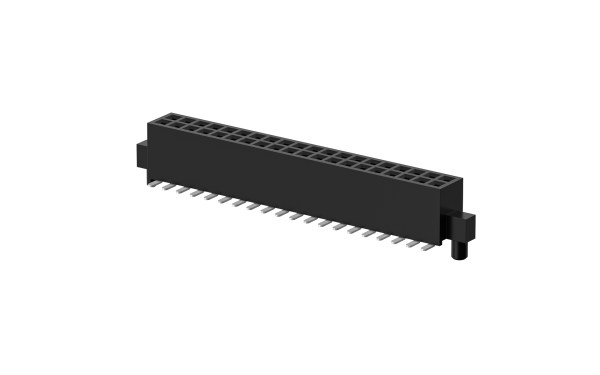

FFH12716-D40S1014K6M
Female Header 1.27mm, Double row, 40Circuits, 180° Vertical(SMT), 1μ", PA6T
FFH12716-D40S1014K6M Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2026-01-03
MPQ
20
MOQ
20
Quantity Unit Price
1 $0.825814
10 $0.779986
50 $0.688330
100 $0.642502
500 $0.550846
1000 $0.440070
2500 $0.434000
5000 $0.427930
10000 $0.421860
25000 $0.415790

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
1.27mm
Row Option
Dual row
Number of Positions
40Circuits
Peg
With peg
Height(mm)
H4.55
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FFH12716 Series

3D Drawings

FFH12716-D40S1XX4K6M_REF
