FFH20012-D14S1004K6M1
排母 2mm(H4.6) ,双排 ,14位 ,立贴 ,Gold flash ,PA6T

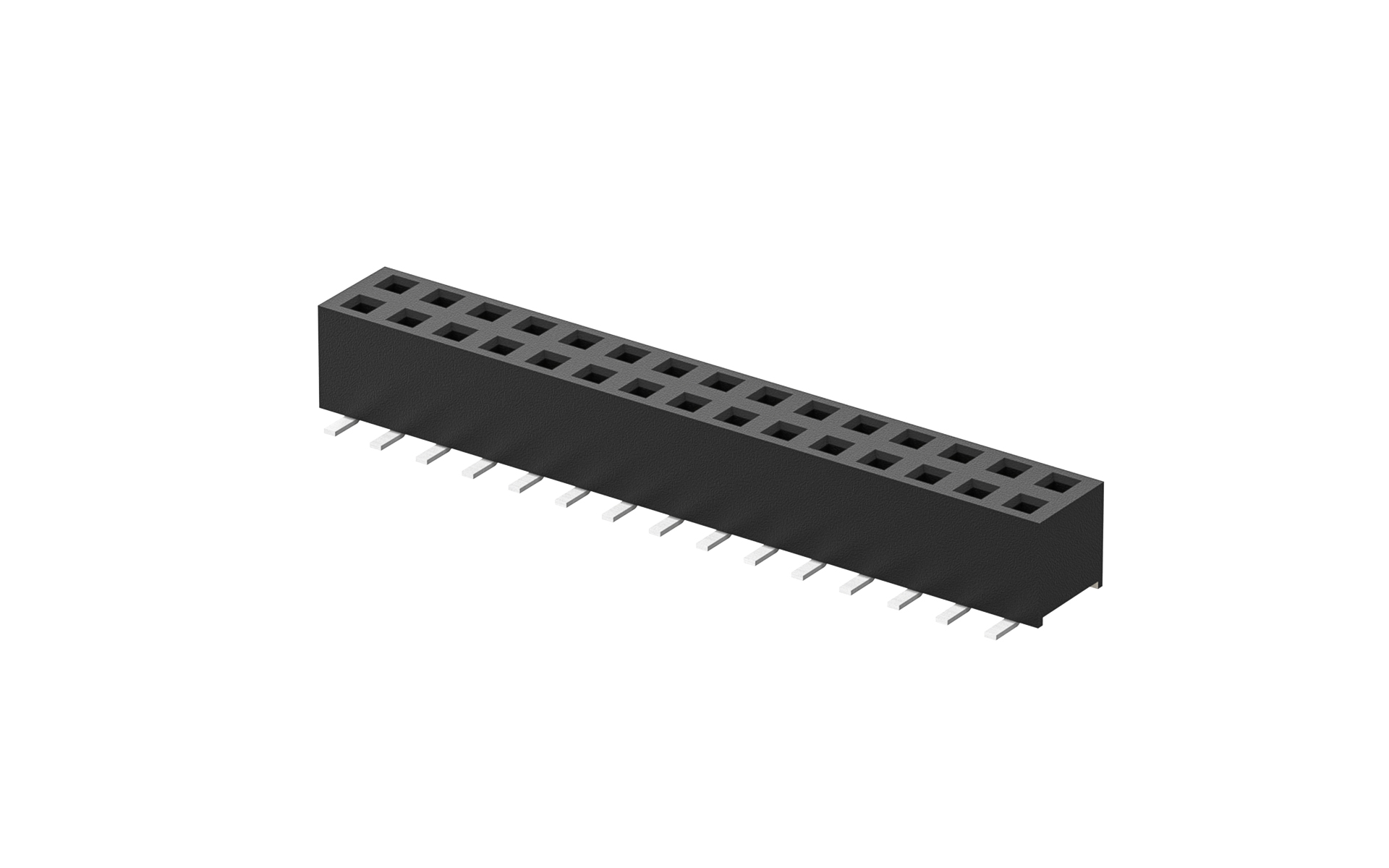

Female Header 2mm, Double row, 14Circuits, 180° Vertical(SMT), Gold flash, PA6T
Product Number：FFH20012-D14S1004K6M1
Production Status： Active
Female Header 2mm, Double row, 14Circuits, 180° Vertical(SMT), Gold flash, PA6T
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{2.060122|tradeCurrencySymbol({digits:6})}}
10+ {{1.942963|tradeCurrencySymbol({digits:6})}}
50+ {{1.708642|tradeCurrencySymbol({digits:6})}}
100+ {{1.591483|tradeCurrencySymbol({digits:6})}}
500+ {{1.357163|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 800
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
2mm
Row Option
Dual row
Number of Positions
14Circuits
Height(mm)
H4.6
Peg
Without peg
Orientation
Vertical(180°)
Colour
Black
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mounting Style
SMT
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Reel(With mylar)

Product Drawings

FFH20012 Series.pdf
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
