FH2MK002-F0024GYE0
重载连接器, H2MK插芯, 母, 2位, 100A, 镀银, 螺钉固定
Heavy-duty connector, H2MK insert, Female, 2Circuits, 100A, silver plated, Screw locking
Product Number：FH2MK002-F0024GYE0
Production Status： Active
Heavy-duty connector, H2MK insert, Female, 2Circuits, 100A, silver plated, Screw locking

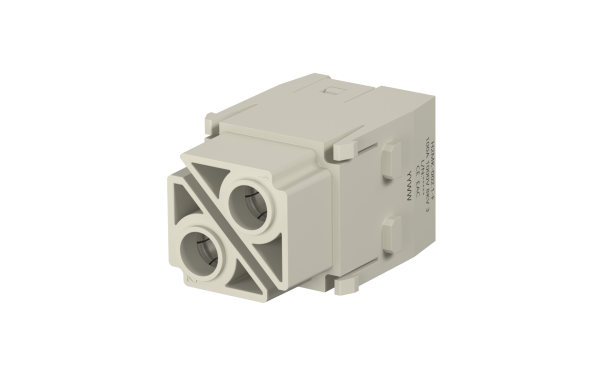

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{112.724269|tradeCurrencySymbol({digits:6})}}
10+ {{102.819626|tradeCurrencySymbol({digits:6})}}
50+ {{83.95364|tradeCurrencySymbol({digits:6})}}
100+ {{70.511624|tradeCurrencySymbol({digits:6})}}
500+ {{67.681726|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 50
MPQ 300

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Heavy-duty Connector (Rectangle)
Product Category
Heavy-duty connector
Product series
HM
Style
Plug
Gender
Female
Row Option
Dual row
Number of Positions
2Circuits
Colour
Gray
Applicable wires (AWG Max.)
4AWG
Applicable wires (mm² Max.)
25mm²
Current(Max)
100A
Voltage(Max)
1000V
Contact Resistance
0.3 mΩ Max
Insulation Resistance
10000 MΩ Min
Operating Temperature Range
-40ºC~+125ºC
Rated impulse voltage
8KV
Mounting Style
Screw locking
Durability (Mating Cycles Max.)
500
Material-Contact
Copper alloy
Plating
Silver plated
Material-Resin
PC
Flammability Rating
UL94 V-0
Packaging
PE Bag

Product Drawings

FH2MK002-F0024GYE0.pdf

3D Drawings

FH2MK002-F0024GYE0.step
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
Plug
Heavy-duty connector, H2MK insert, Male, 2 Circuits, 100A, silver plated, Screw locking
FH2MK001-M0024GYE0
Heavy-duty connector, H2MK insert, Male, 2 Circuits, 100A, silver plated, Screw locking
Assemblies
Heavy-duty connector， HF24B Frame， No. of module: 6
FHDF001-10GY0
Heavy-duty connector， HF24B Frame， No. of module: 6
Heavy-duty connector， HF24B Frame， No. of module: 6
FHDF002-10GY0
Heavy-duty connector， HF24B Frame， No. of module: 6
