FHC03-FSB100BKM
Micro HDMI 2.1 D型 19Circuits ,母座 ,90°混合焊接
Micro HDMI 2.1 D-type 19Circuits, FEMALE, 90° Angle (Hybrid solder)
Product Number：FHC03-FSB100BKM
Production Status： Active
Micro HDMI 2.1 D-type 19Circuits, FEMALE, 90° Angle (Hybrid solder)

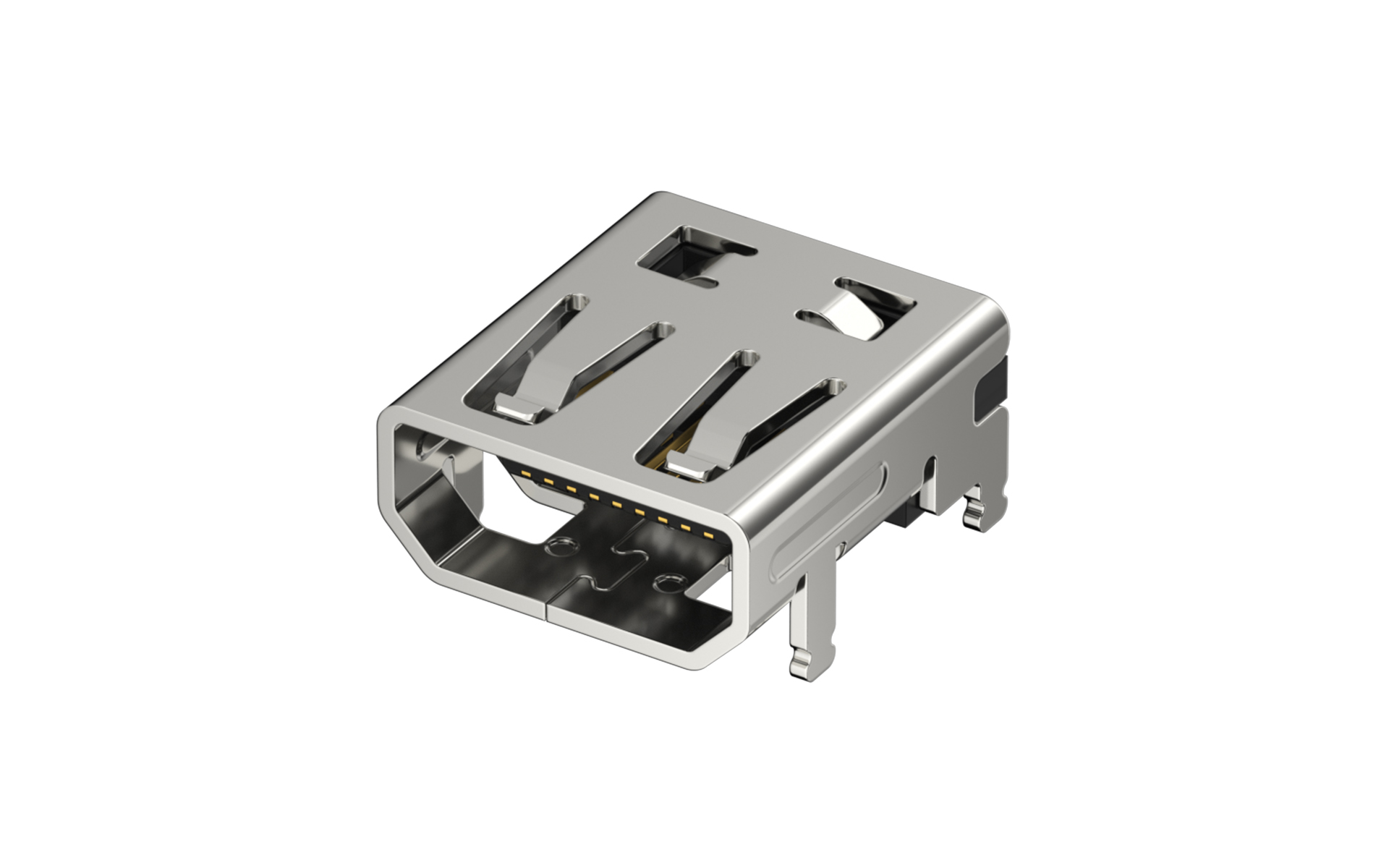

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{5.576295|tradeCurrencySymbol({digits:6})}}
10+ {{5.266843|tradeCurrencySymbol({digits:6})}}
50+ {{4.647937|tradeCurrencySymbol({digits:6})}}
100+ {{4.338485|tradeCurrencySymbol({digits:6})}}
500+ {{3.719579|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 1000
MPQ 1

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Audio/Video Connector
Product Category
HDMI
Style
Socket
Gender
Female
Type
Type D
Version
2.1
Number of Positions
19Circuits
Orientation
Right angle(90°)
Colour
Black
Current(Max)
0.5A
Voltage(Max)
40V
Contact Resistance
30 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mounting Style
Hybrid solder
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Reel

Product Drawings

FHC03.pdf

3D Drawings

FHC03-FSB100BKM_ref.stp
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
