FHD22-FSB300K6M
HDMI 2.0 A型 19触点 母座 90°卧贴
HDMI 2.0 19Circuits A Female 90°Angle(SMT)
Product Number：FHD22-FSB300K6M
Production Status： Active

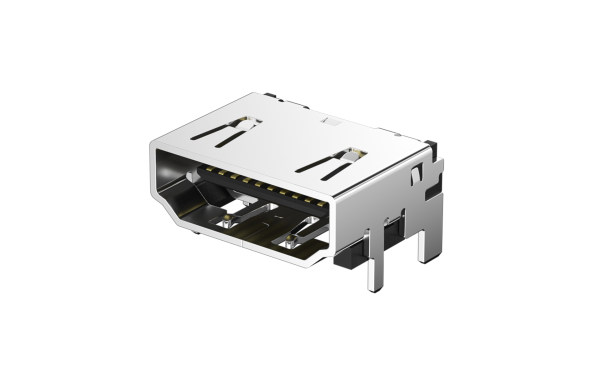

HDMI 2.0 19Circuits A Female 90°Angle(SMT)
HDMI 2.0 19Circuits A Female 90°Angle(SMT)
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

视频加载失败，请稍后重试。

{{ videoIndex + 1 }} / {{ videos.length }}
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{2.987902|tradeCurrencySymbol({digits:6})}}
10+ {{2.912863|tradeCurrencySymbol({digits:6})}}
50+ {{2.53767|tradeCurrencySymbol({digits:6})}}
100+ {{2.401236|tradeCurrencySymbol({digits:6})}}
500+ {{2.019221|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 1834
Lead time Ship Immediately
MOQ 3000
MPQ 2700

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Audio/Video Connector
Product Category
HDMI
Style
Socket
Gender
Female
Type
Type A
Version
2.0
Number of Positions
19Circuits
Orientation
Right angle(90°)
Colour
Black
Current(Max)
0.5A
Voltage(Max)
40V
Contact Resistance
10 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mounting Style
SMT
Material-Contact
Brass
Plating
Gold on contact, matte tin on tail
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Reel

Product Drawings

FHD22.pdf

3D Drawings

FHD22-FSB300K6M_REF.stp
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
