线端插头胶壳 0.8mm ,7位 ,PA46
FHG08002-S07M6W5B

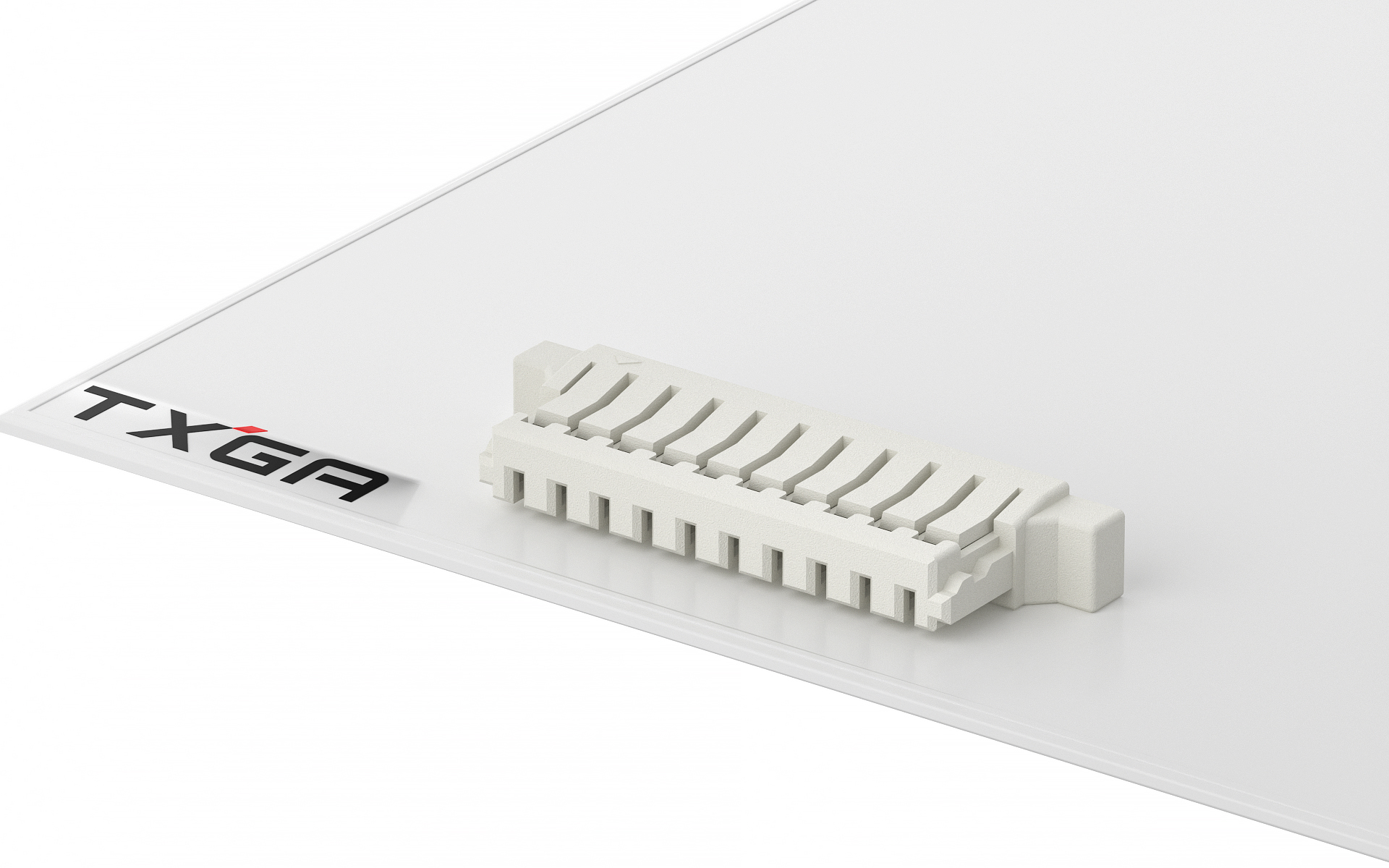

Wire to board housing 0.8mm, 7Circuits, PA46
FHG08002-S07M6W5B Copy
Share this product
Stock(pcs)
264
Lead time

≦ 264 In stock

＞ 264 Estimated delivery date 2025-10-13

MPQ
2000
MOQ
2000
Quantity Unit Price
1 $0.263760
10 $0.119234
50 $0.099362
100 $0.086715
500 $0.079489
1000 $0.049139
5000 $0.048416
10000 $0.047693

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Housing
Gender
Male
Pitch
0.8mm
Row Option
Single row
Number of Positions
7Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
30V
Operating Temperature Range
-25ºC~+85ºC
Material
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FHG08002 Series

3D Drawings

FHG08002-S07M6W5B_REF
Terminal
Wire to board terminal 0.8mm Female(Gold-Plated)

FT08001-F1H

Wire to board terminal 0.8mm Female(Gold-Plated)
Receptacle
Wafer 0.80mm, 7Circuits, 180° Vertical(SMT), Gold, LCP

FWF08001-S07S13W5M

Wafer 0.80mm, 7Circuits, 180° Vertical(SMT), Gold, LCP

 Wafer 0.80mm, 7Circuits, 90° Angle(SMT), Gold, LCP

FWF08002-S07B13W5M

Wafer 0.80mm, 7Circuits, 90° Angle(SMT), Gold, LCP
