线端插头胶壳 0.8mm ,9位 ,PA46
FHG08002-S09M6W5B

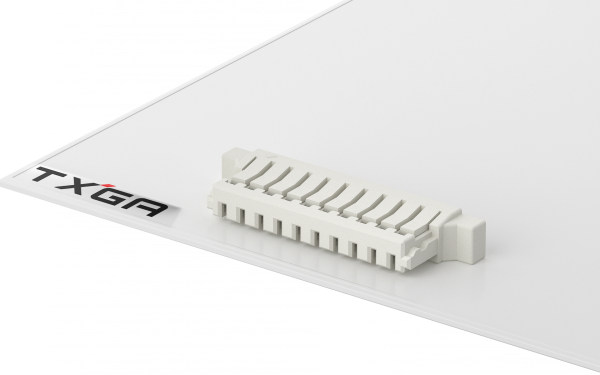

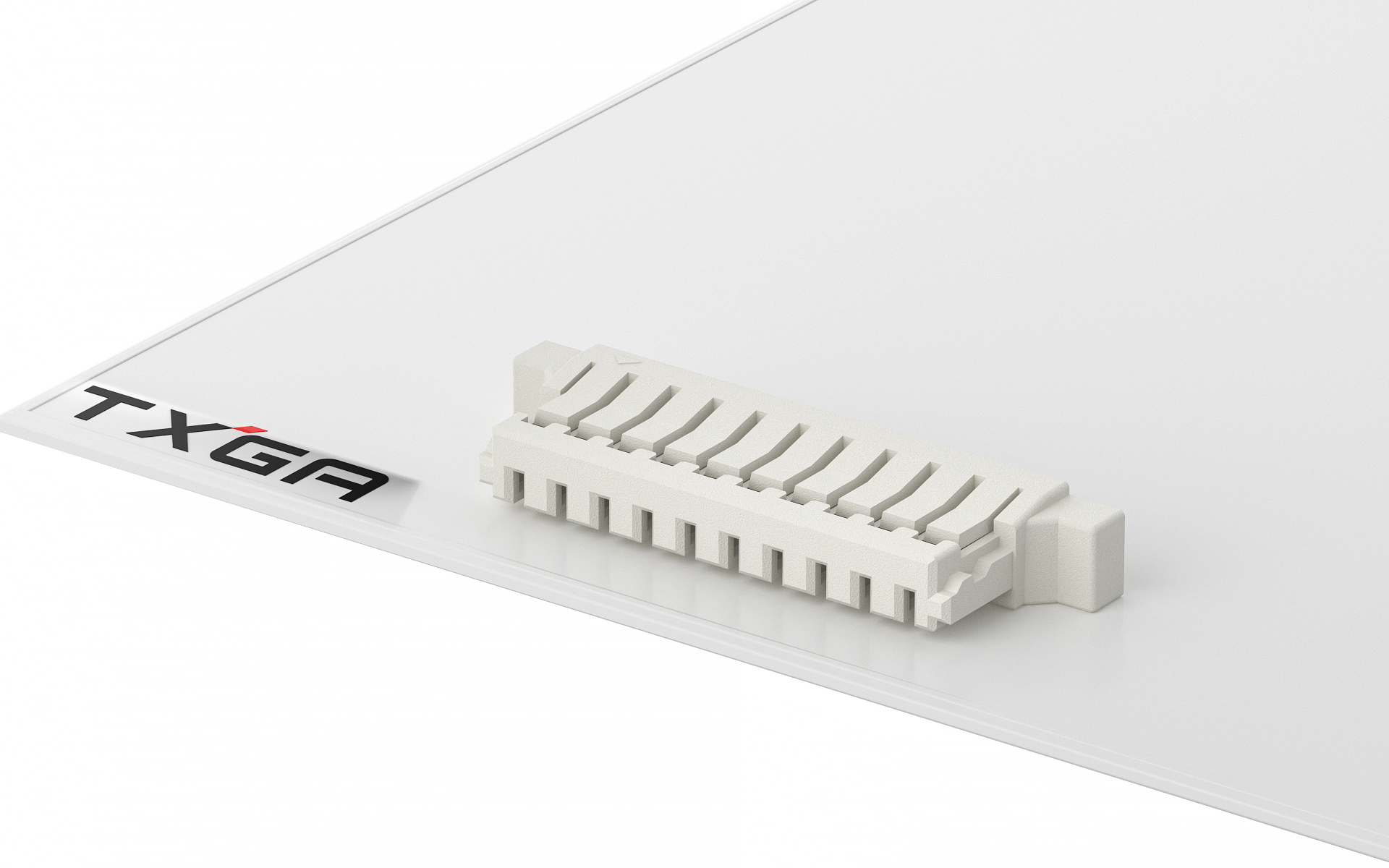

Wire to board housing 0.8mm, 9Circuits, PA46
FHG08002-S09M6W5B Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-10-13
MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.195036
10 $0.130024
50 $0.111449
100 $0.102162
500 $0.086373
1000 $0.062922
5000 $0.061994
10000 $0.061065

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Housing
Gender
Male
Pitch
0.8mm
Row Option
Single row
Number of Positions
9Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
30V
Operating Temperature Range
-25ºC~+85ºC
Material
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FHG08002 Series
Terminal
Wire to board terminal 0.8mm Female(Gold-Plated)

FT08001-F1H

Wire to board terminal 0.8mm Female(Gold-Plated)
Receptacle
Wafer 0.80mm, 9Circuits, 180° Vertical(SMT), Gold, LCP

FWF08001-S09S13W5M

Wafer 0.80mm, 9Circuits, 180° Vertical(SMT), Gold, LCP

 Wafer 0.80mm, 9Circuits, 90° Angle(SMT), Gold, LCP

FWF08002-S09B13W5M

Wafer 0.80mm, 9Circuits, 90° Angle(SMT), Gold, LCP
