FHG30005-D04F2BKB Wire to board Housing, 3mm, 4Circuits

FHG30005-D04F2BKB

Wire to board Housing, 3mm, 4Circuits

Product Number：FHG30005-D04F2BKB

Production Status： Active

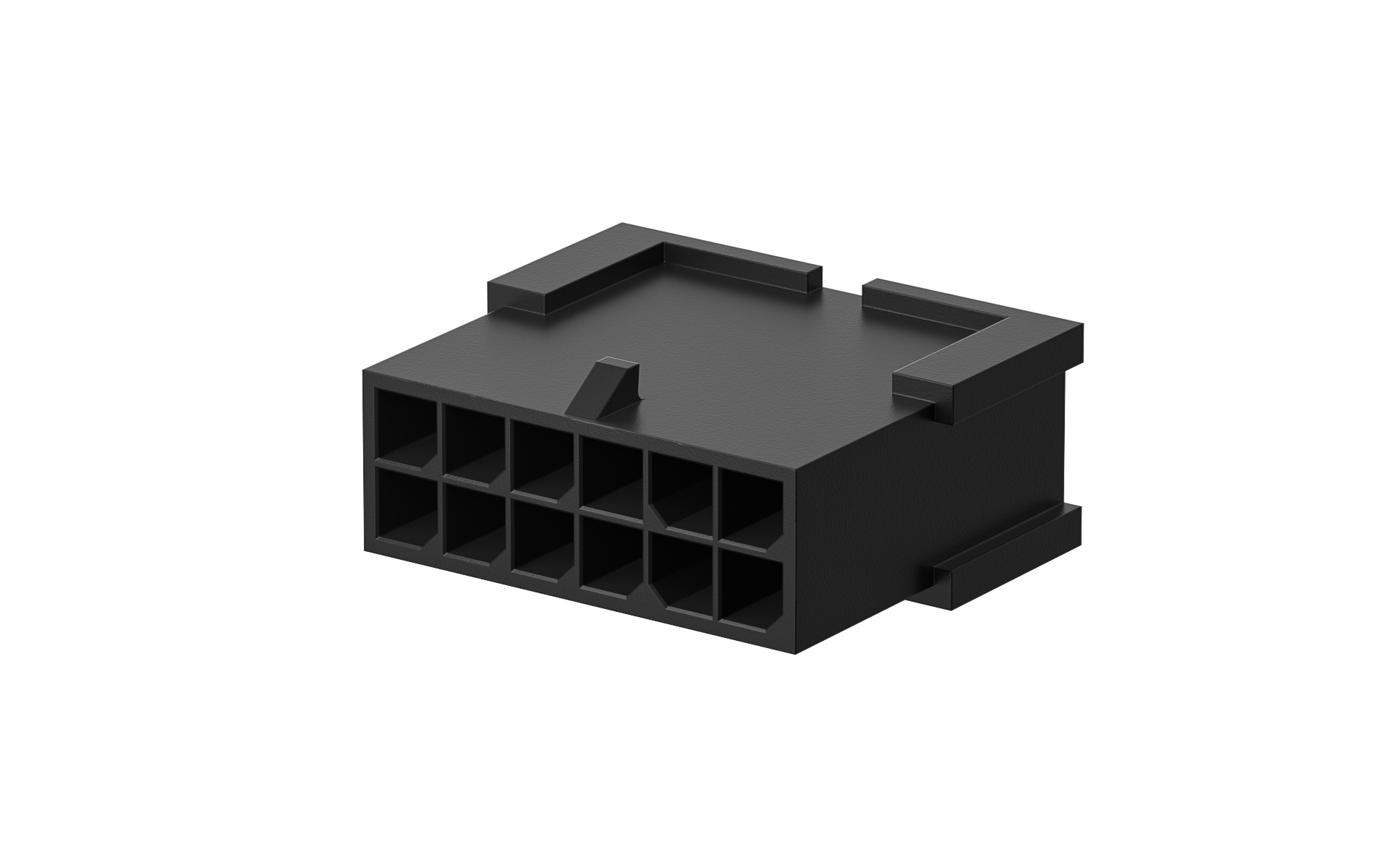

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Product Catalog

Connectors

Product System

Wire to Board/Wire Connector

Style

Housing

Gender

Female

Pitch

3mm

Row Option

Dual row

Number of Positions

4Circuits

Orientation

Vertical(180°)

Colour

Black

Current(Max)

Voltage(Max)

250V

Operating Temperature Range

-25ºC~+85ºC

Material-Resin

PA66

Flammability Rating

UL94 V-0

Packaging

PE Bag

Product Drawings

FHG30005 Series.pdf

3D Drawings

FHG30005-D04F2BKB_REF.stp

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
