FHM45001-M0000GY00
重载连接器, HM-RJ45模块插芯, 公

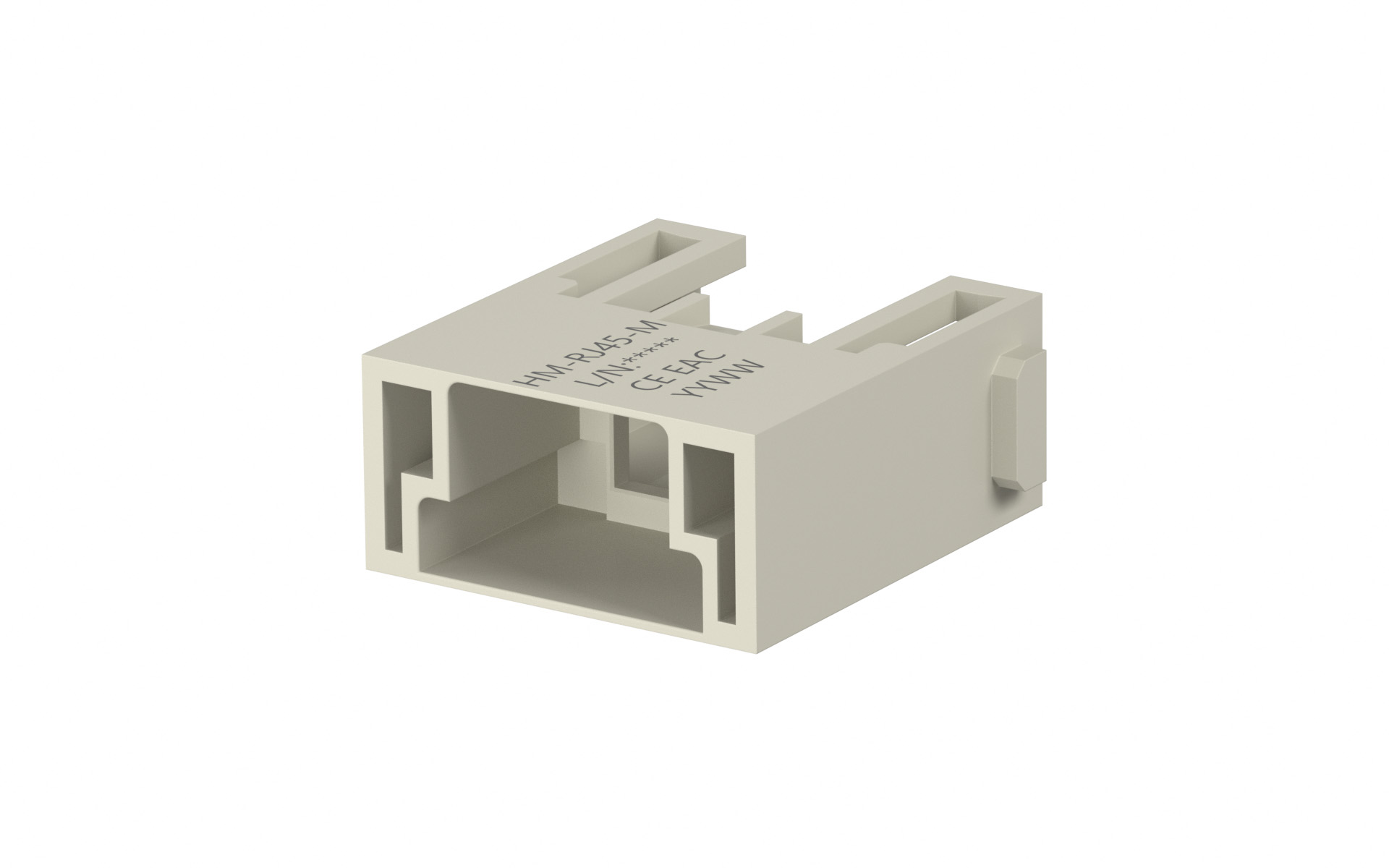

Heavy-duty connector, HM-RJ45 modular insert, Male
Product Number：FHM45001-M0000GY00
Production Status： Active
Heavy-duty connector, HM-RJ45 modular insert, Male
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{19.24138|tradeCurrencySymbol({digits:6})}}
10+ {{17.179804|tradeCurrencySymbol({digits:6})}}
50+ {{14.125617|tradeCurrencySymbol({digits:6})}}
100+ {{11.834976|tradeCurrencySymbol({digits:6})}}
500+ {{11.376848|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 10
MPQ 400

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Heavy-duty Connector (Rectangle)
Product Category
Heavy-duty connector
Product series
HM
Style
Housing
Gender
Male
Row Option
Single row
Number of Positions
8Circuits
Colour
Gray
Applicable wires (AWG Max.)
N/A
Applicable wires (mm² Max.)
N/A
Current(Max)
1A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
10000 MΩ Min
Operating Temperature Range
-40ºC~+85ºC
Rated impulse voltage
0.8KV
Durability (Mating Cycles Max.)
500
Plating
No
Material-Resin
PC
Flammability Rating
UL94 V-0
Packaging
PE Bag

Product Drawings

FHM45001-M0000GY00.pdf

3D Drawings

FHM45001-M0000GY00.step
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
Plug
Heavy-duty connector, HM-RJ45 modular insert, Female
FHM45002-F0081GY00
Heavy-duty connector, HM-RJ45 modular insert, Female
Assemblies
Heavy-duty connector， HF24B Frame， No. of module: 6
FHDF001-10GY0
Heavy-duty connector， HF24B Frame， No. of module: 6
Heavy-duty connector， HF24B Frame， No. of module: 6
FHDF002-10GY0
Heavy-duty connector， HF24B Frame， No. of module: 6
Heavy-duty connector, HM-RJ45 modular for patch cable
FHM45003-M0000GY00
Heavy-duty connector, HM-RJ45 modular for patch cable
