FHMP0001-00030BU00

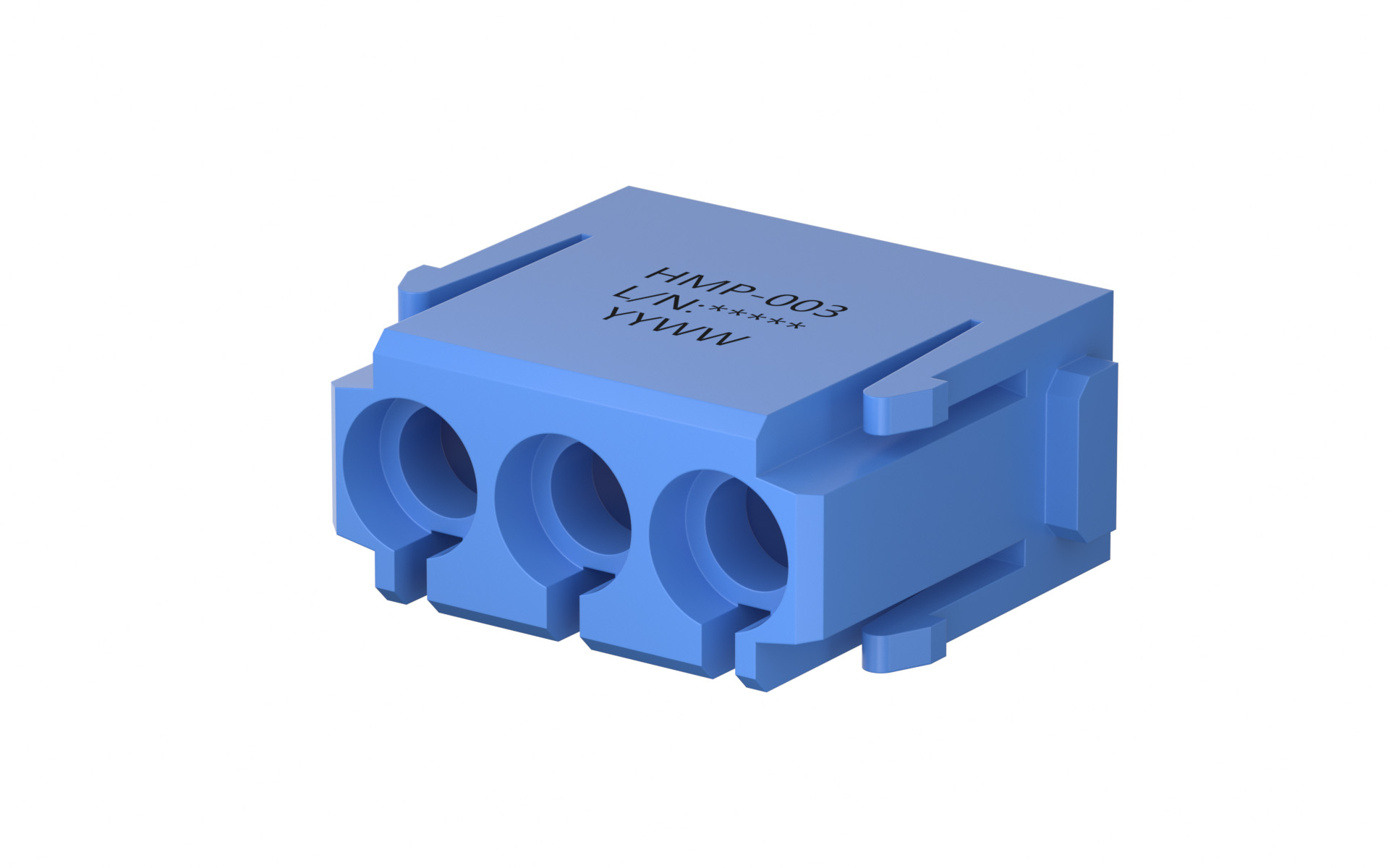

重载连接器, HMP 气动模块插芯,3位
Heavy-duty connector，HMP Pneumatic insert，3 Circuits
Product Number：FHMP0001-00030BU00
Production Status： Active
Heavy-duty connector，HMP Pneumatic insert，3 Circuits
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{36.952643|tradeCurrencySymbol({digits:6})}}
10+ {{33.455068|tradeCurrencySymbol({digits:6})}}
50+ {{27.372328|tradeCurrencySymbol({digits:6})}}
100+ {{22.886308|tradeCurrencySymbol({digits:6})}}
500+ {{21.973897|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 50
MPQ 300

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Heavy-duty Connector (Rectangle)
Product Category
Heavy-duty connector
Product series
HM
Style
Housing
Gender
Mixed
Row Option
Single row
Number of Positions
3Circuits
Colour
Blue
Applicable wires (AWG Max.)
N/A
Applicable wires (mm² Max.)
N/A
Operating Temperature Range
-40ºC~+85ºC
Durability (Mating Cycles Max.)
500
Plating
No
Material-Resin
PC
Flammability Rating
UL94 V-0
Packaging
PE Bag

Product Drawings

FHMP0001-00030BU00.pdf

3D Drawings

FHMP0001-00030BU00.step
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
Assemblies
Heavy-duty connector， HF24B Frame， No. of module: 6
FHDF001-10GY0
Heavy-duty connector， HF24B Frame， No. of module: 6
Heavy-duty connector， HF24B Frame， No. of module: 6
FHDF002-10GY0
Heavy-duty connector， HF24B Frame， No. of module: 6
Heavy-duty connector, Pneumatic insert, Male, Inner diameter ∅3mm
FHPC01-M030BK0
Heavy-duty connector, Pneumatic insert, Male, Inner diameter ∅3mm
Heavy-duty connector, Pneumatic insert, Female, Inner diameter ∅3mm
FHPC02-F030BK0
Heavy-duty connector, Pneumatic insert, Female, Inner diameter ∅3mm
