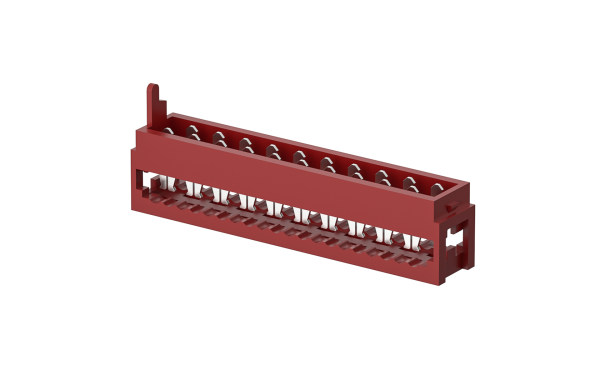

FID12709-084R1L Micro match 1.27mm 8Circuits

FID12709-084R1L

Micro match 1.27mm 8Circuits

Product Number：FID12709-084R1L

Production Status： Active

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

视频加载失败，请稍后重试。

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{1.610582\|tradeCurrencySymbol({digits:6})}}
10+	{{1.166721\|tradeCurrencySymbol({digits:6})}}
50+	{{1.018767\|tradeCurrencySymbol({digits:6})}}
100+	{{0.934222\|tradeCurrencySymbol({digits:6})}}
500+	{{0.807405\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 1000

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Micro Match

Style

Plug

Gender

Male

Pitch

1.27mm

Row Option

Dual row

Number of Positions

8Circuits

Assemblies

2 Assemblies

Orientation

Right angle(90°)

Colour

Red

Current(Max)

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mounting Style

IDC

Material-Contact

Phosphor bronze

Plating

Bright tin plated

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Tube

Product Drawings

Drawing-FID12709.pdf

3D Drawings

FID12709-084R1L-REF .STEP

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
