FID25407-203K6K

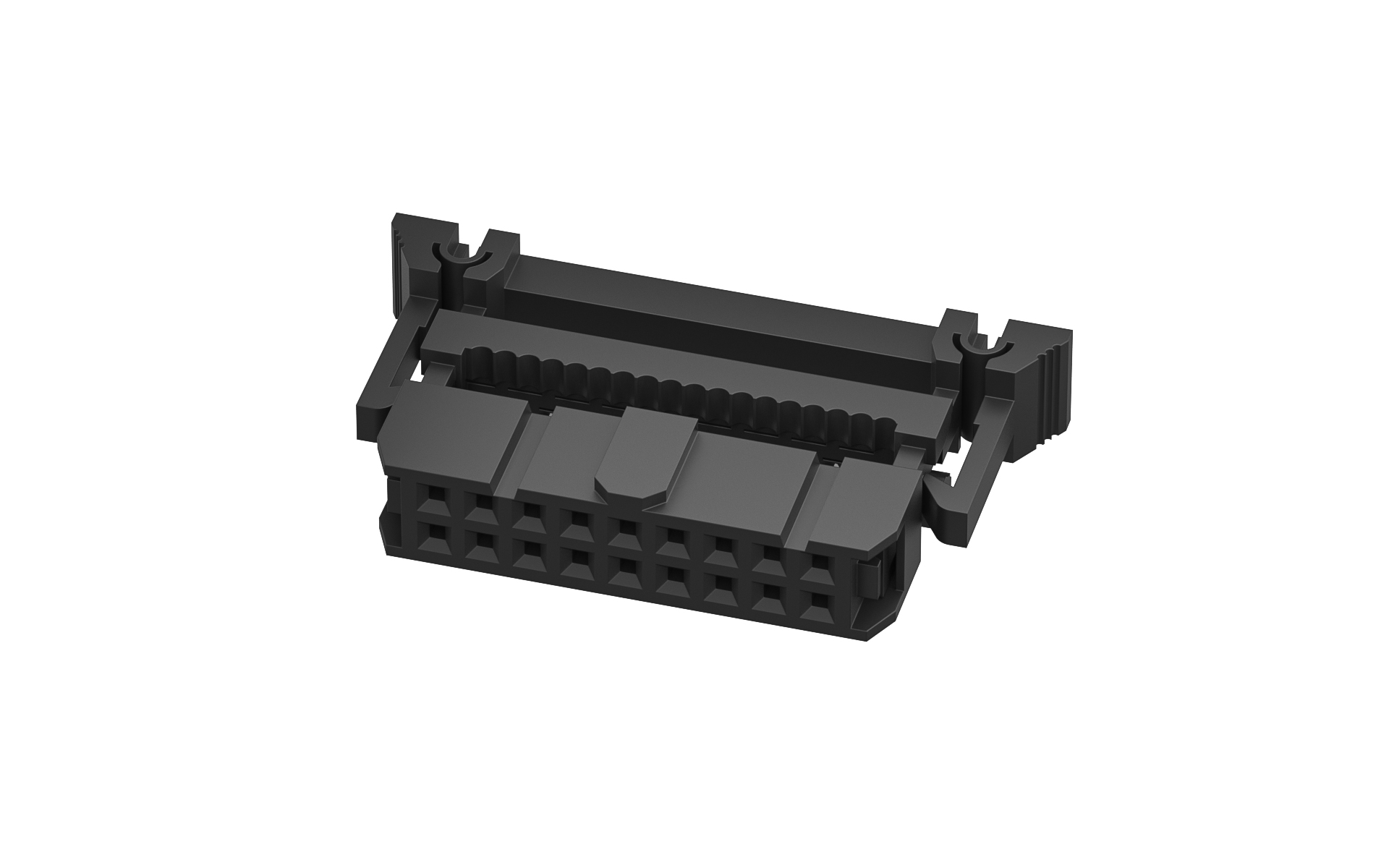

IDC 2.54mm 20位(三组件)(蝴蝶扣)
IDC 2.54mm 20Circuits(3 Assemblies)
Product Number：FID25407-203K6K
Production Status： Active
IDC 2.54mm 20Circuits(3 Assemblies)
IDC 2.54mm 20Circuits(3 Assemblies)
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

视频加载失败，请稍后重试。

{{ videoIndex + 1 }} / {{ videos.length }}
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{1.794332|tradeCurrencySymbol({digits:6})}}
10+ {{1.26004|tradeCurrencySymbol({digits:6})}}
50+ {{1.081942|tradeCurrencySymbol({digits:6})}}
100+ {{1.006251|tradeCurrencySymbol({digits:6})}}
500+ {{0.841511|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 1000
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
IDC Connector
Style
Plug
Pitch
2.54mm
Row Option
Dual row
Number of Positions
20Circuits
Assemblies
3 Assemblies
Orientation
Right angle(90°)
Colour
Black
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mounting Style
IDC
Material-Contact
Brass
Plating
Nickel plated
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Tray

Product Drawings

FID25407 Series.pdf
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
