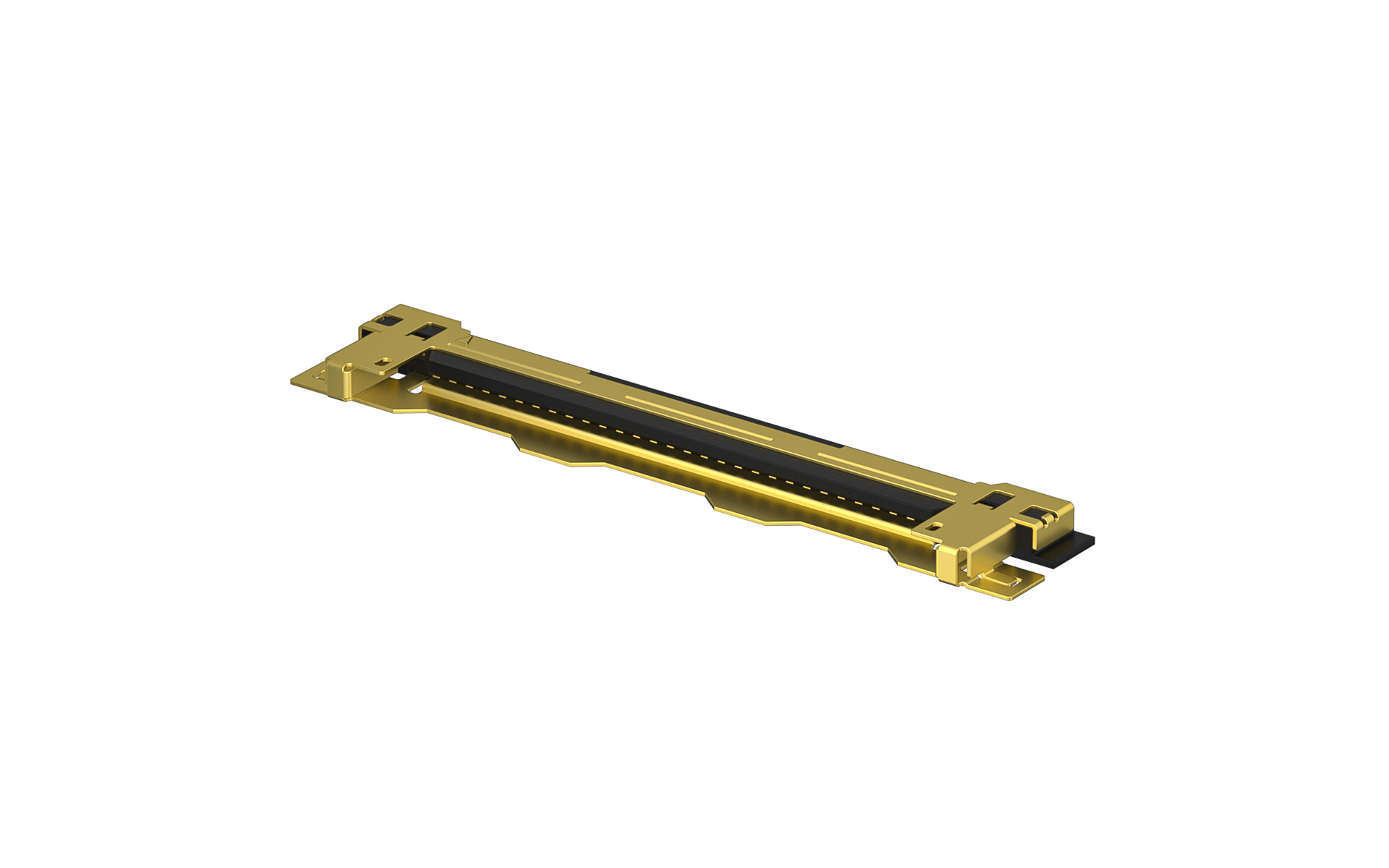

FLV05002-30SBA1033K6M
LVDS插座 0.5mm 卧贴 30位(3μ'')
LVDS 0.5mm 90°Angle 30Circuits(SMT)(3μ'')
Product Number：FLV05002-30SBA1033K6M
Production Status： Active
LVDS 0.5mm 90°Angle 30Circuits(SMT)(3μ'')
LVDS 0.5mm 90°Angle 30Circuits(SMT)(3μ'')
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

视频加载失败，请稍后重试。

{{ videoIndex + 1 }} / {{ videos.length }}
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{6.695726|tradeCurrencySymbol({digits:6})}}
10+ {{6.324151|tradeCurrencySymbol({digits:6})}}
50+ {{5.581002|tradeCurrencySymbol({digits:6})}}
100+ {{5.209428|tradeCurrencySymbol({digits:6})}}
500+ {{4.466278|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 625
Lead time Ship Immediately
MOQ 10000
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
LVDS Connector
Style
Socket
Gender
Female
Pitch
0.5mm
Number of Positions
30Circuits
Contact Mating Location
Top contact
Height(mm)
H1
Orientation
Right angle(90°)
Colour
Black
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mounting Style
SMT
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Reel

Product Drawings

Drawing-FLV05002.pdf

3D Drawings

FLV05002-30SBA1033K6M-REF .STEP
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
Plug
LVDS 0.5mm, 30Circuits, Soldering, 0.075μm(3 Assemblies)
FLV05004-30WS01033BKK
LVDS 0.5mm, 30Circuits, Soldering, 0.075μm(3 Assemblies)
