FM12ST1137-X08S103D00
M12母端插座, 屏蔽, 通孔焊接, M16X1.5, 前锁, X编码, 8芯, CAT6A

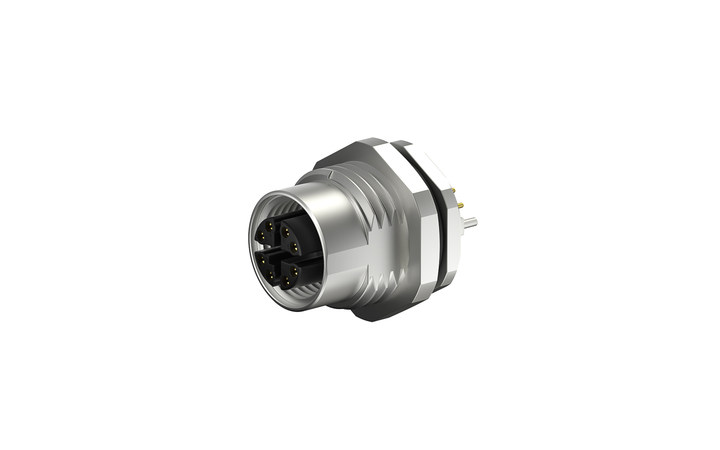

M12 female socket, shield, through-hole welding, M16X1.5, front lock, X-code, 8 cores, CAT6A
Product Number：FM12ST1137-X08S103D00
Production Status： Active
M12 female socket, shield, through-hole welding, M16X1.5, front lock, X-code, 8 cores, CAT6A
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{45.609729|tradeCurrencySymbol({digits:6})}}
10+ {{41.864002|tradeCurrencySymbol({digits:6})}}
50+ {{38.118276|tradeCurrencySymbol({digits:6})}}
100+ {{35.03356|tradeCurrencySymbol({digits:6})}}
500+ {{31.50817|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 16
Lead time Ship Immediately
MOQ 70
MPQ 140

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
M12 Circular Connector
Style
Socket
Gender
Female
Coding
X coding
Shielded
Shielded
Number of Positions
8Circuits
Contacts Type
socket
Orientation
Vertical(180°)
Colour
Black
Performance Category
Cat.6a
Current(Max)
0.5A
Voltage(Max)
60V
Contact Resistance
5 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Waterproof / Dustproof
Yes
Ingress Protection
IP67
Panel Mount Feature
Front nut
Mounting Thread
M16x1.5
Mounting Style
Through hole
Durability (Mating Cycles Max.)
100
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
Packaging
Tray

Product Drawings

FM12ST1137.pdf

3D Drawings

FM12ST1137-X08S103D00.STEP
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
