FM5WT0101-A03P104020000

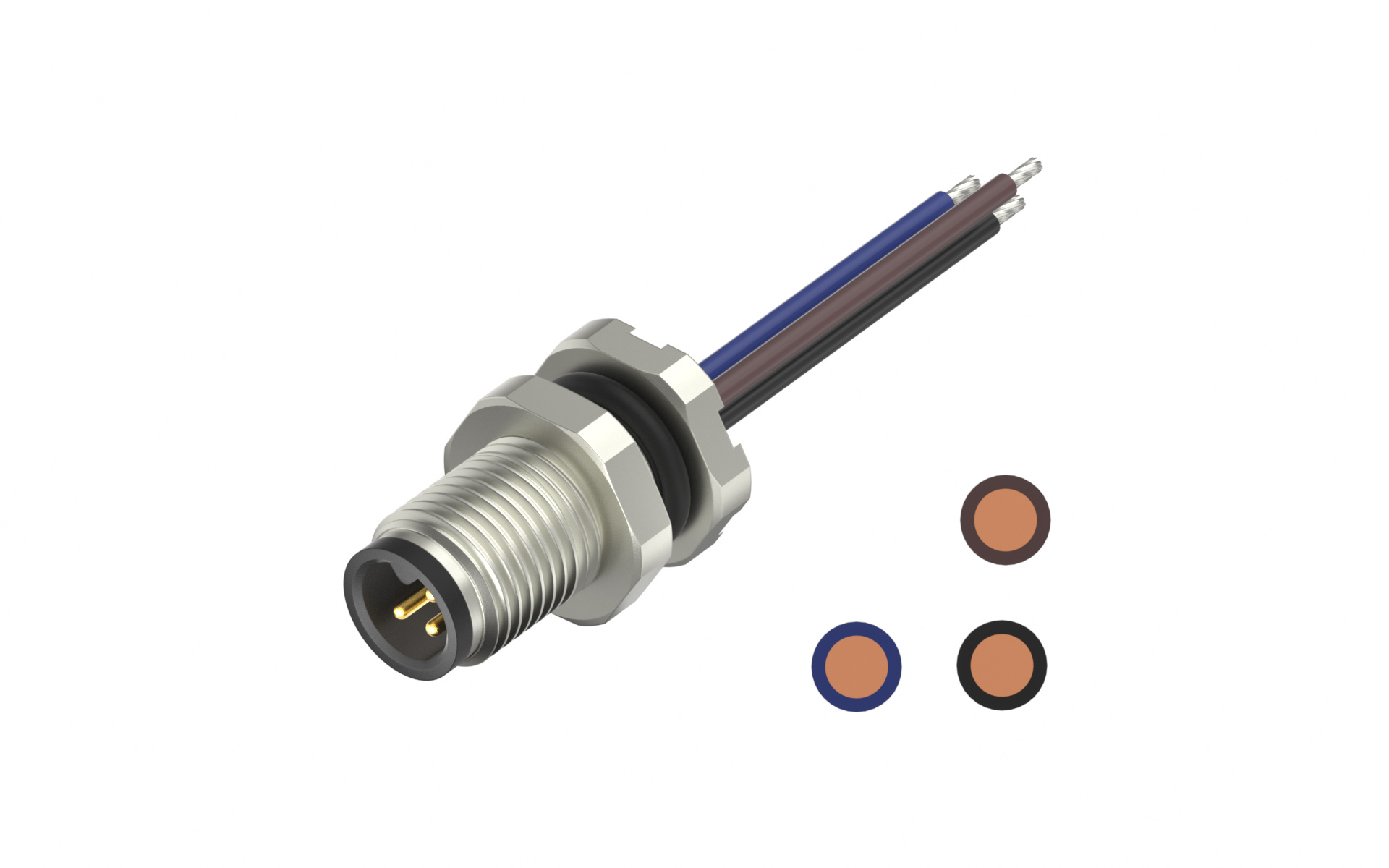

前锁M5X0.5公插座全圆形,A 编码3位,公针镀金0.1μm ,单端带电子线长L=200mm
Front fastened M5X0.5, Male Socket, A-Coded, 3Circuits, Pin Ep0.1μm, with lize L=200mm, free end
Product Number:FM5WT0101-A03P104020000
Production Status: Active
Front fastened M5X0.5, Male Socket, A-Coded, 3Circuits, Pin Ep0.1μm, with lize L=200mm, free end
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{17.359066|tradeCurrencySymbol({digits:6})}}
10+ {{16.073209|tradeCurrencySymbol({digits:6})}}
50+ {{14.305156|tradeCurrencySymbol({digits:6})}}
100+ {{13.180032|tradeCurrencySymbol({digits:6})}}
500+ {{11.894175|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 10
MPQ 1000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
M5 Circular Connector
Style
Cable assembly
Gender
Male
Coding
A coding
Shielded
Non-shielded
Number of Positions
3Circuits
Contacts Type
pin
Colour
Black
Cable Length(mm)
L=200mm
Current(Max)
1A
Voltage(Max)
60V
Contact Resistance
5 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Panel Mount Feature
Front nut
Mounting Thread
M5x0.5
Durability (Mating Cycles Max.)
100
Material-Contact
Copper alloy
Plating
Gold plated
Material-Resin
PA
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
Packaging
PE Bag
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
