FM5WT0201-A04S104020000
前锁M7X0.75母插座全圆形,A 编码4位,母针镀金0.1μm ,单端带电子线长L=200mm

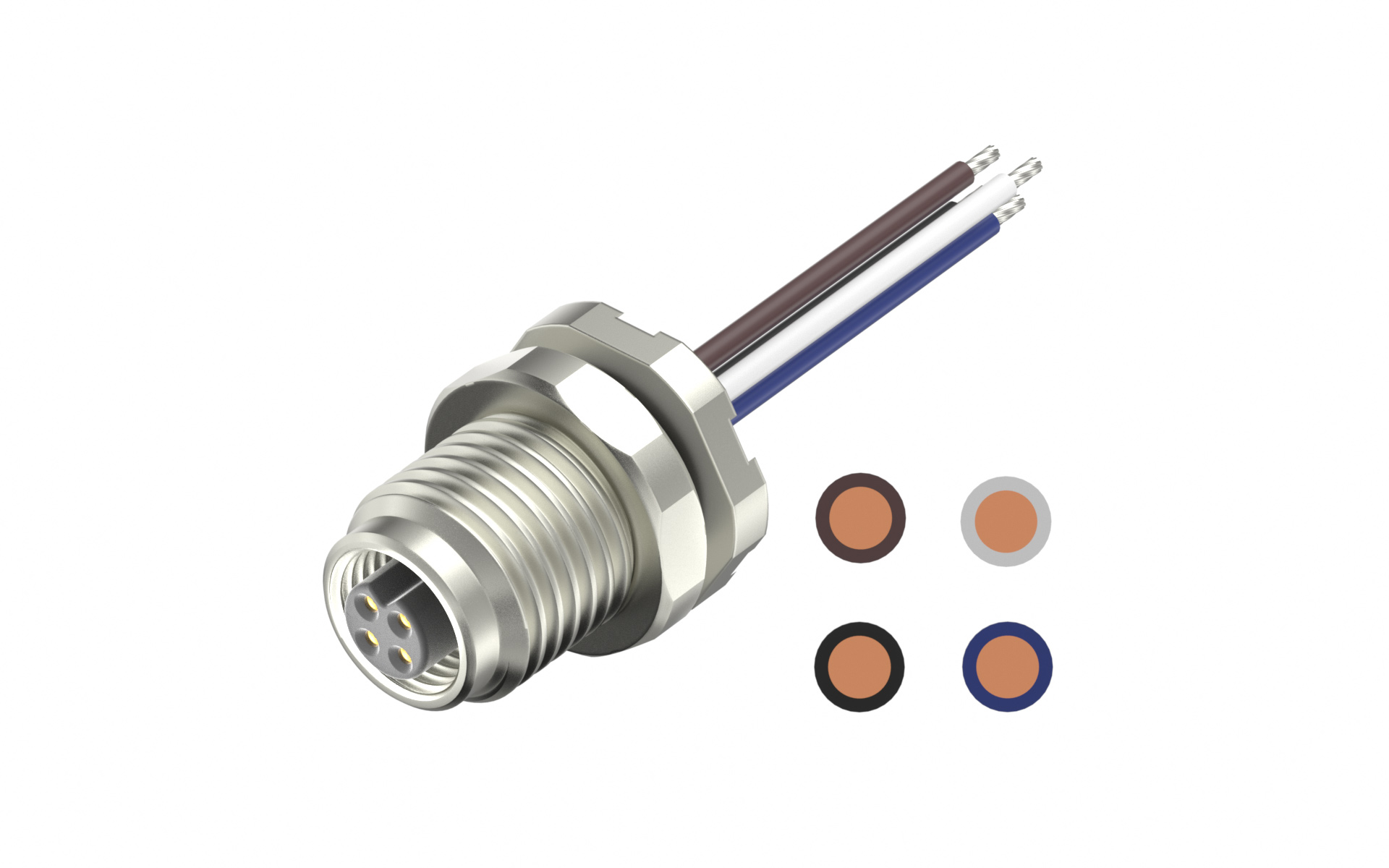

Front fastened M7X0.75, Female Socket, A-Coded, 4Circuits, Socket Ep0.1μm, with lize L=200mm, free
Product Number:FM5WT0201-A04S104020000
Production Status: Active
Front fastened M7X0.75, Female Socket, A-Coded, 4Circuits, Socket Ep0.1μm, with lize L=200mm, free
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{22.122079|tradeCurrencySymbol({digits:6})}}
10+ {{20.356467|tradeCurrencySymbol({digits:6})}}
50+ {{18.279277|tradeCurrencySymbol({digits:6})}}
100+ {{16.825243|tradeCurrencySymbol({digits:6})}}
500+ {{15.163491|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 10
MPQ 1000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
M5 Circular Connector
Style
Cable assembly
Gender
Female
Coding
A coding
Shielded
Non-shielded
Number of Positions
4Circuits
Contacts Type
socket
Colour
Black
Cable Length(mm)
L=200mm
Current(Max)
1A
Voltage(Max)
60V
Contact Resistance
5 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Panel Mount Feature
Front nut
Mounting Thread
M7x0.75
Durability (Mating Cycles Max.)
100
Material-Contact
Copper alloy
Plating
Gold plated
Material-Resin
PA
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
Packaging
PE Bag
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
