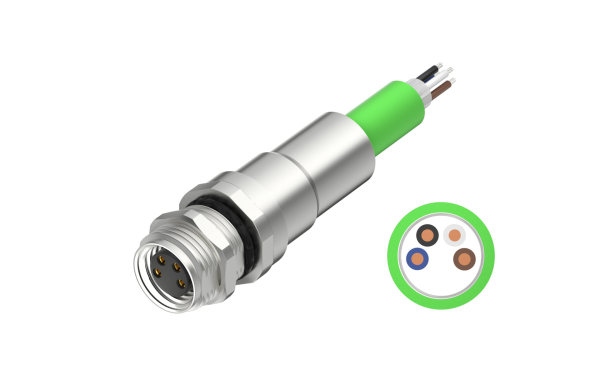

FM8C030408-A04E0050000 Front fastened, M8X1.0 Female socket with Ethernet, A Coded 4pin, with cable L=500mm, free end

FM8C030408-A04E0050000

板前安装，M8X1.0母插座带以太网电缆，A编码4位，单端带多芯线长L=500mm

Front fastened, M8X1.0 Female socket with Ethernet, A Coded 4pin, with cable L=500mm, free end

Product Number：FM8C030408-A04E0050000

Production Status： Active

Front fastened, M8X1.0 Female socket with Ethernet, A Coded 4pin, with cable L=500mm, free end

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{47.583713\|tradeCurrencySymbol({digits:6})}}
10+	{{43.675872\|tradeCurrencySymbol({digits:6})}}
50+	{{39.768031\|tradeCurrencySymbol({digits:6})}}
100+	{{36.549809\|tradeCurrencySymbol({digits:6})}}
500+	{{32.87184\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 2

MPQ 100

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

M8 Circular Connector

Style

Cable assembly

Gender

Female

Coding

A coding

Shielded

Number of Positions

4Circuits

Contacts Type

socket

Colour

Black

Cable Length(mm)

L=500mm

Current(Max)

Voltage(Max)

60V

Contact Resistance

5 mΩ Max

Insulation Resistance

100 MΩ Min

Withstanding Voltage

800V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Waterproof / Dustproof

Yes

Ingress Protection

IP68

Panel Mount Feature

Front nut

Mounting Thread

M10x0.75

Durability (Mating Cycles Max.)

100

Material-Contact

Copper alloy

Plating

Gold plated

Plating Thickness

0.1μm

Material-Resin

Flammability Rating

UL94 V-0

Material of Housing

Metal

Locking Material

Metal

Packaging

PE Bag

Product Drawings

FM8C030408.pdf

3D Drawings

FM8C030408-A04EXXXXX00.stp

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
