FM8C060401-A08R0200000
M8X1.0 A编码8芯,母端弯头双端带屏蔽,PUR线长L=2米
M8X1.0 ACoded 8pin, female right angle with shield, PURcable length L=2M
Product Number:FM8C060401-A08R0200000
Production Status: Active

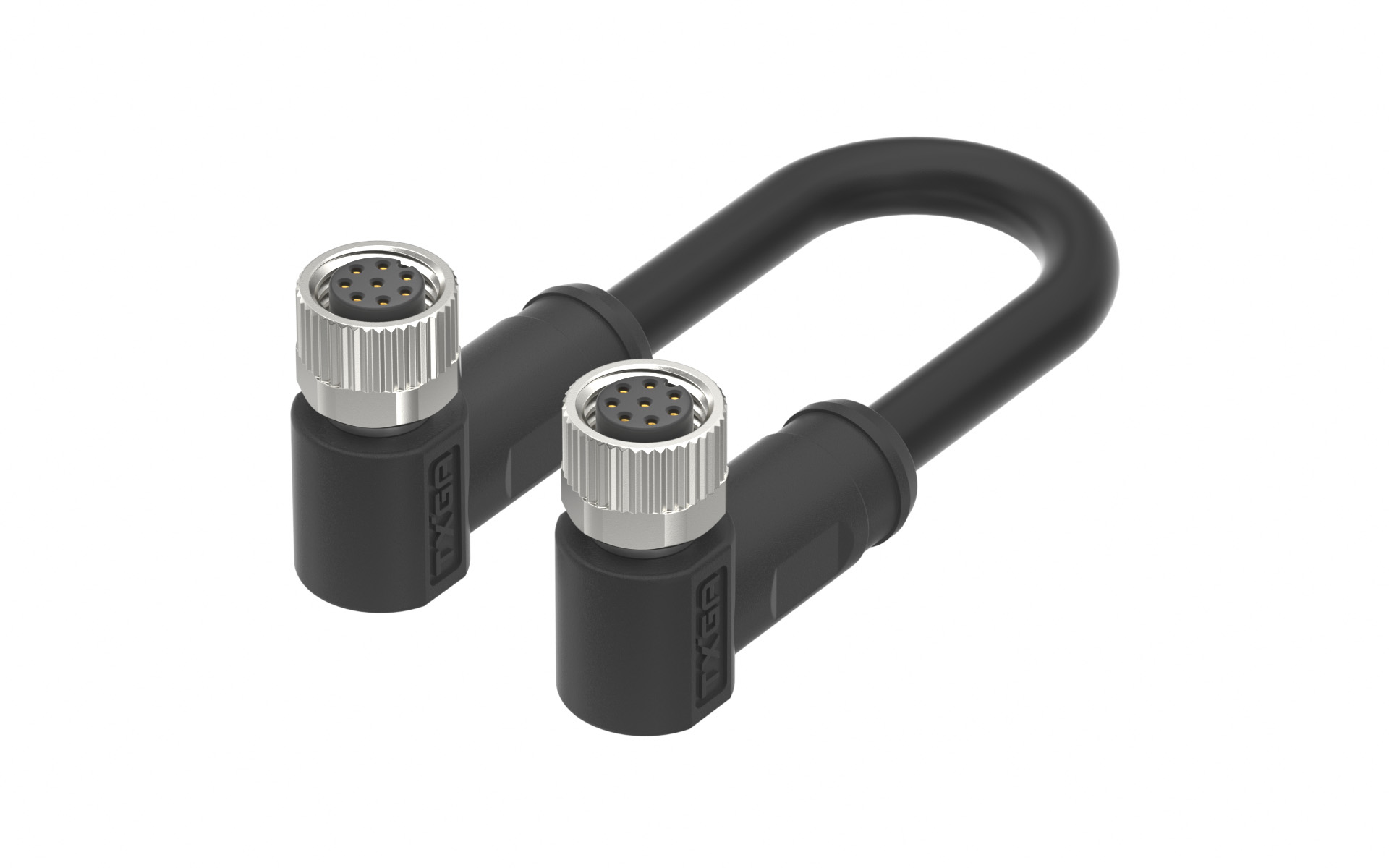

M8X1.0 ACoded 8pin, female right angle with shield, PURcable length L=2M
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{120.561223|tradeCurrencySymbol({digits:6})}}
10+ {{110.414982|tradeCurrencySymbol({digits:6})}}
50+ {{101.462415|tradeCurrencySymbol({digits:6})}}
100+ {{93.106687|tradeCurrencySymbol({digits:6})}}
500+ {{83.557283|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 2
MPQ 100

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
M8 Circular Connector
Style
Cable assembly
Coding
A coding
Shielded
Shielded
Cable Category
Female Bent to bent
Number of Positions
8Circuits
Angle-Key
90°
Cable Length(M)
L=2M
Current(Max)
1.5A
Voltage(Max)
30V
Insulation Resistance
100 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Durability (Mating Cycles Max.)
100
Material of Housing
Metal
Packaging
PE Bag

Product Drawings

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
