FM8SR0325-A03P104W00
板后安装,M8X0.5 全金属公插座全圆形,A编码 ,3位 ,焊线式

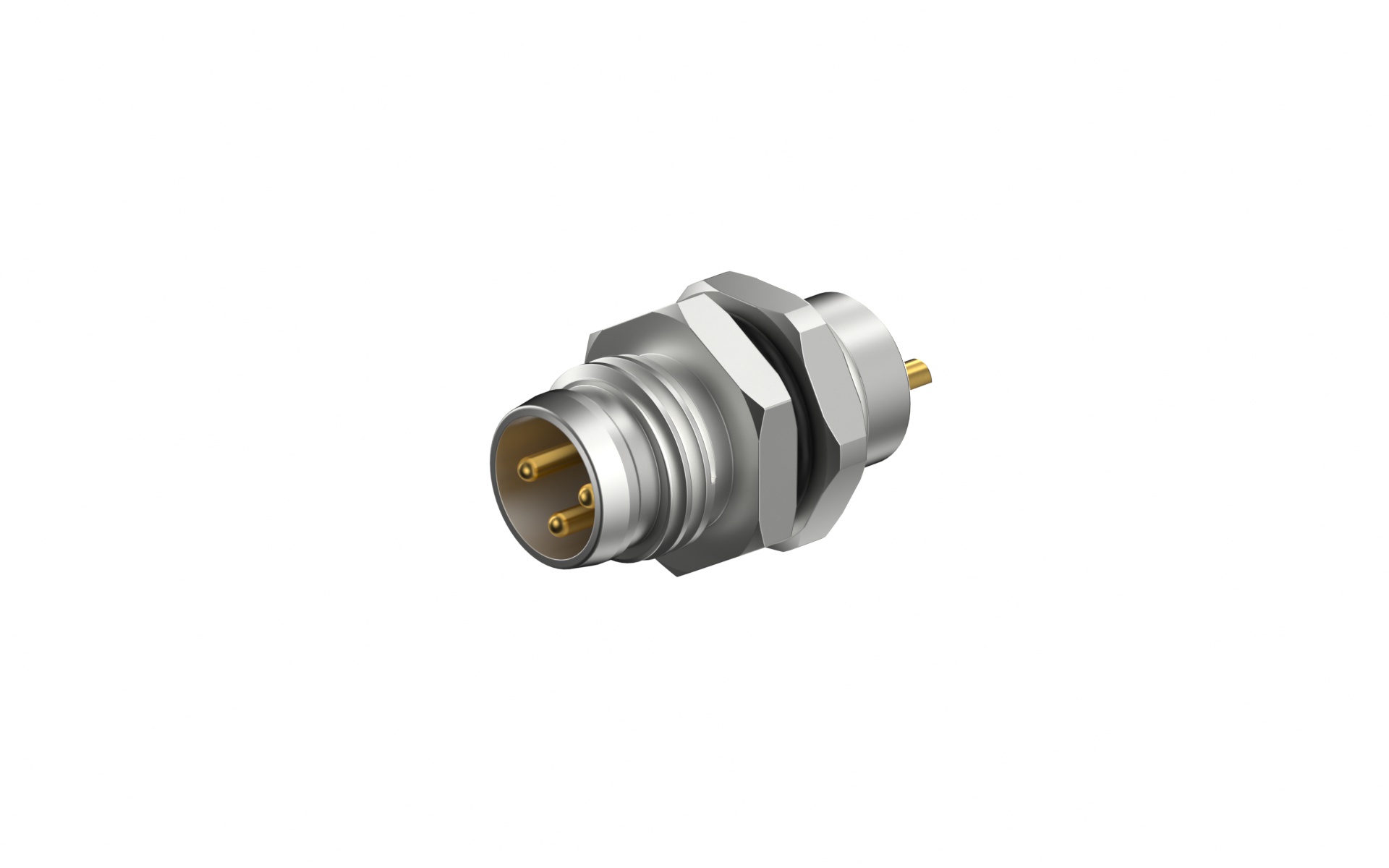

Rear fastened M8X0.5 male Socket circle , A-Coded , 3Circuits , solder
Product Number:FM8SR0325-A03P104W00
Production Status: Active
Rear fastened M8X0.5 male Socket circle , A-Coded , 3Circuits , solder
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{20.335898|tradeCurrencySymbol({digits:6})}}
10+ {{18.727944|tradeCurrencySymbol({digits:6})}}
50+ {{16.741647|tradeCurrencySymbol({digits:6})}}
100+ {{15.417449|tradeCurrencySymbol({digits:6})}}
500+ {{13.904079|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 10
MPQ 1000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
M8 Circular Connector
Style
Socket
Gender
Male
Coding
A coding
Shielded
Non-shielded
Number of Positions
3Circuits
Contacts Type
pin
Orientation
Vertical(180°)
Colour
Black
Current(Max)
4A
Voltage(Max)
60V
Contact Resistance
3 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Panel Mount Feature
Rear nut
Mounting Thread
M8x0.5
Mounting Style
Soldering
Durability (Mating Cycles Max.)
100
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
Packaging
Tray

Product Drawings

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
