FM8ST0508-A06S104D00
板前安装,M10X0.75 母插座全圆形,A编码6位 ,弯头通孔焊接,带屏蔽

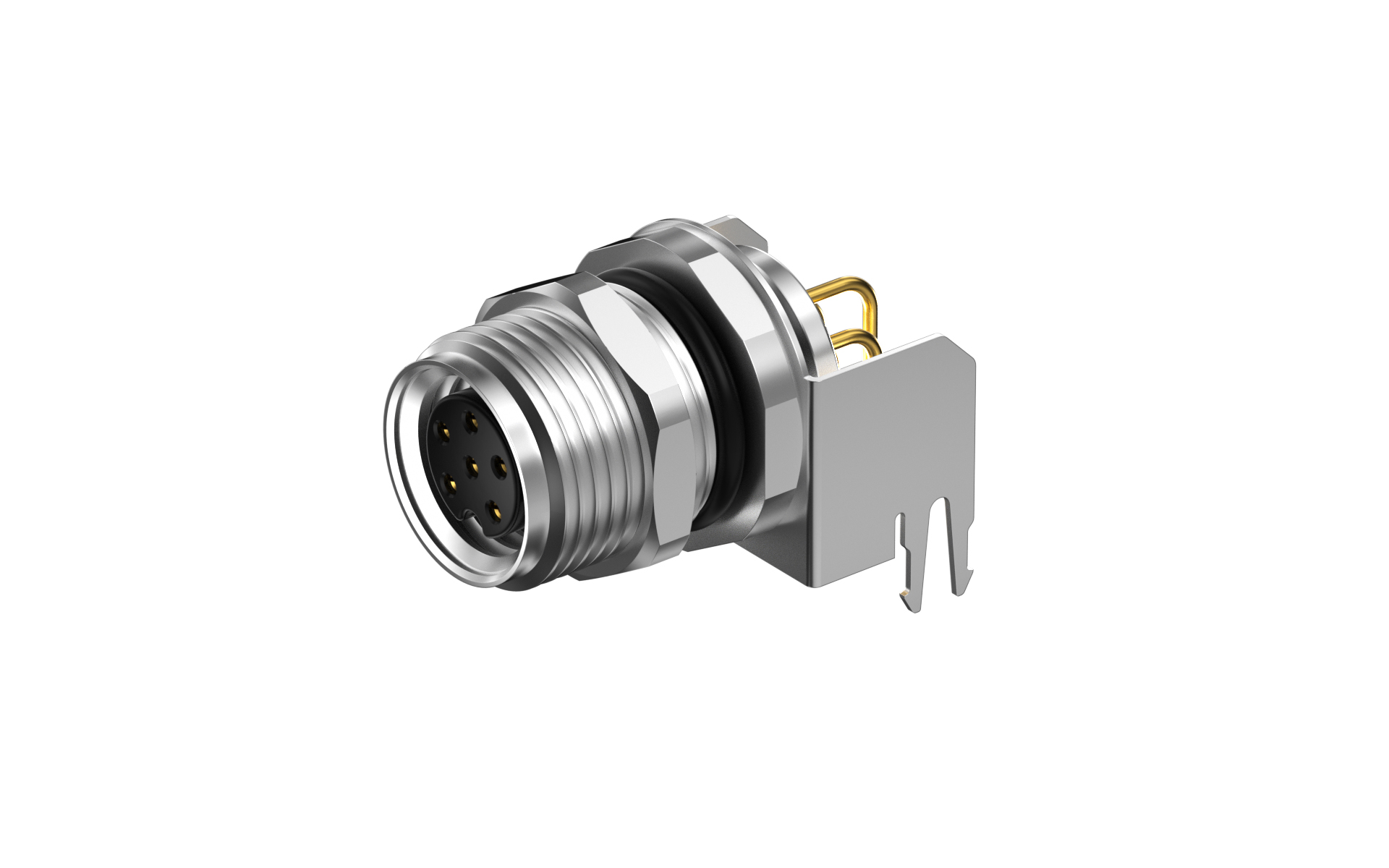

Front fastened M10X0.75 female Socket circle , A-Coded , 6Circuits , RA,THT, with shield
Product Number:FM8ST0508-A06S104D00
Production Status: Active
Front fastened M10X0.75 female Socket circle , A-Coded , 6Circuits , RA,THT, with shield
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{27.182409|tradeCurrencySymbol({digits:6})}}
10+ {{24.971399|tradeCurrencySymbol({digits:6})}}
50+ {{22.630331|tradeCurrencySymbol({digits:6})}}
100+ {{20.809499|tradeCurrencySymbol({digits:6})}}
500+ {{18.72855|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 10
MPQ 1000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
M8 Circular Connector
Style
Socket
Gender
Female
Coding
A coding
Shielded
Shielded
Number of Positions
6Circuits
Contacts Type
socket
Orientation
Right angle(90°)
Colour
Black
Current(Max)
1.5A
Voltage(Max)
30V
Contact Resistance
3 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Panel Mount Feature
Front nut
Mounting Thread
M10x0.75
Mounting Style
Through hole
Durability (Mating Cycles Max.)
100
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
Packaging
Tray

Product Drawings

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
