微D形连接器, 25位, 公, 直角(90度), 通孔焊接, 蓝色 (J30J-25TJWP7-J)
FMD002-M025BDBU-00

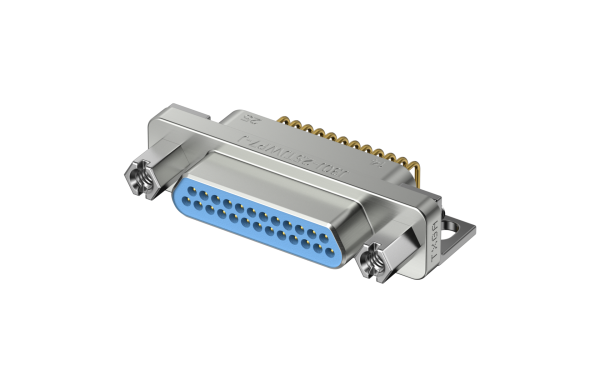

Micro-D connector, 25Circuits, Male, Right angle(90°), Through hole, Blue (J30J-25TJWP7-J)
FMD002-M025BDBU-00 Copy
Share this product
Stock(pcs)
1
Lead time

≦ 1 In stock

＞ 1 Estimated delivery date 2025-12-29

MPQ
10
MOQ
10
Quantity Unit Price
1 $27.523387
5 $26.758849
10 $26.185445
50 $25.612041
100 $24.847502
500 $23.700694
1000 $23.318425

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Micro-D Connector
Product Category
Micro-D connector
Features
Standard
Style
Socket
Gender
Male
Row Option
Dual row
Number of Positions
25Circuits
Orientation
Right angle(90°)
Colour
Blue
Electrical
Current(Max)
3A
Voltage(Max)
500V
Contact Resistance
10 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Through hole
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.25μm
Material-Resin
PPS
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray

Product Drawings

FMD002-M025BDXX-XX

3D Drawings

FMD002-M025BDBU-00
Plug
Micro-D connector, One-way plug cable, Female, 25Circuits, L=500mm (J30J-25ZKL)

FWMD0-S0250500-002

Micro-D connector, One-way plug cable, Female, 25Circuits, L=500mm (J30J-25ZKL)
