FMNTU03-F08BS716NM00

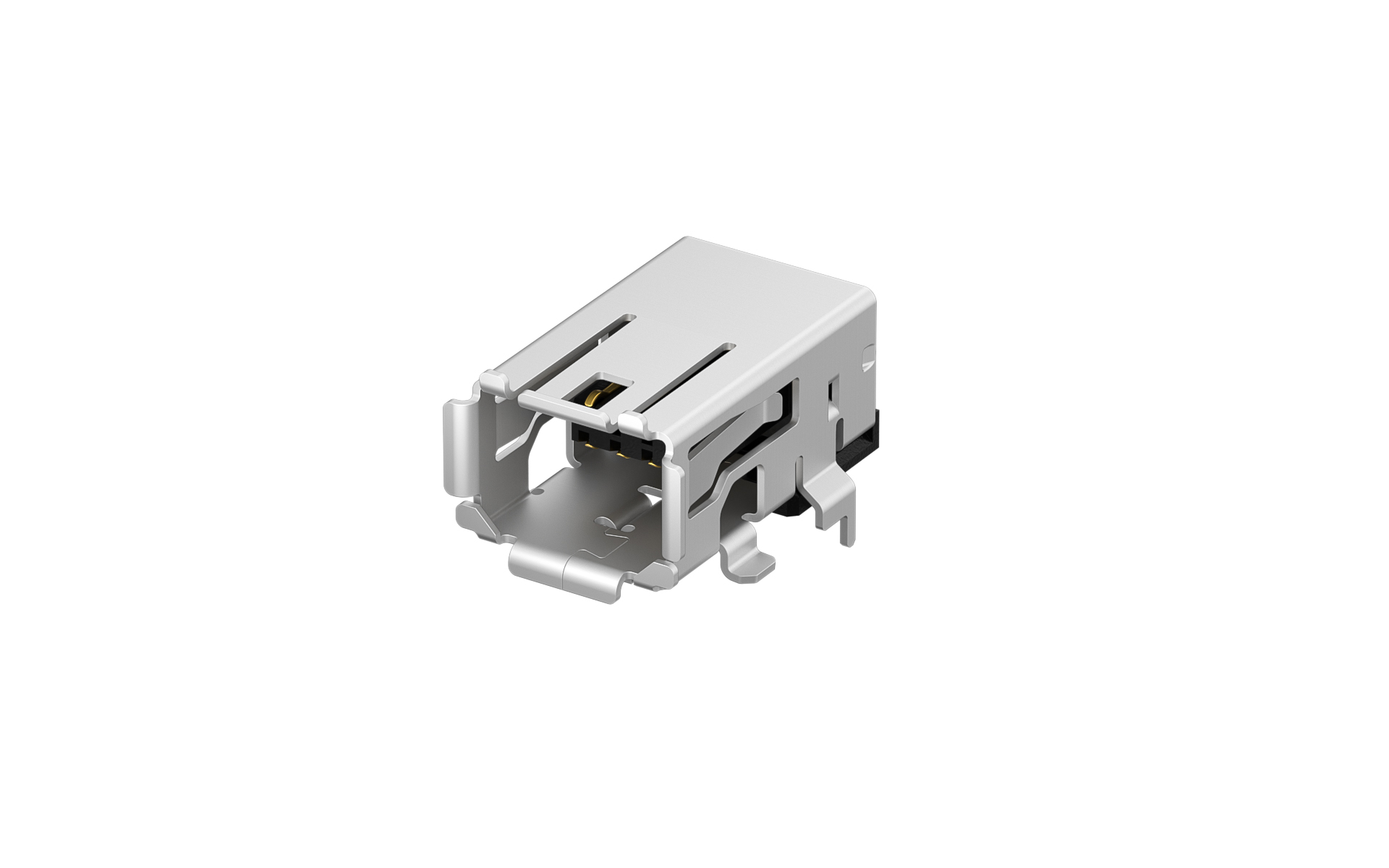

MINI IO U型弯贴母插座 不带定位柱, 接触部镀金0.5μm, 卷带包装
MINI IO U-shape RA female socket SMT, without peg, contact area Ep au 0.5μm, Reel package
Product Number:FMNTU03-F08BS716NM00
Production Status: Active
MINI IO U-shape RA female socket SMT, without peg, contact area Ep au 0.5μm, Reel package
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{10.027048|tradeCurrencySymbol({digits:6})}}
250+ {{7.409694|tradeCurrencySymbol({digits:6})}}
500+ {{6.303769|tradeCurrencySymbol({digits:6})}}
1500+ {{5.677079|tradeCurrencySymbol({digits:6})}}
3000+ {{5.492758|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 308
Lead time Ship Immediately
MOQ 250
MPQ 1500

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Mini I/O Connector
Style
Socket
Gender
Female
Type
Type U
Shielded
Shielded
Number of Positions
8Circuits
Peg
Without peg
Orientation
Right angle(90°)
Colour
Black
Performance Category
Cat.5e
Current(Max)
0.5A
Voltage(Max)
60V
Contact Resistance
40 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Data Rate
1000Mbps
Mounting Style
SMT
Durability (Mating Cycles Max.)
1500
Material-Contact
Phosphor bronze
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.5μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Reel

Product Drawings

3D Drawings

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
