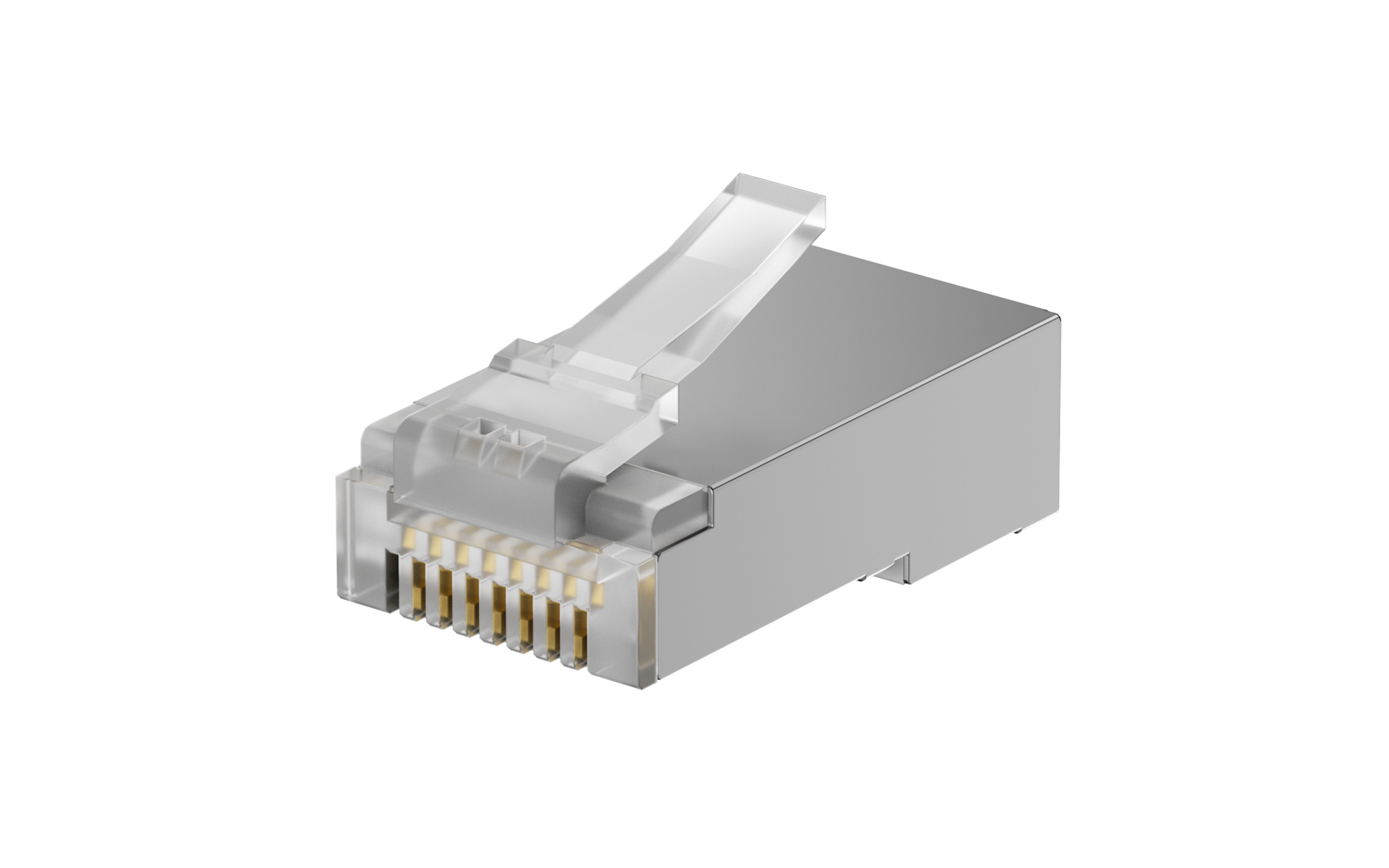

FMP04-103B 8P8C Modular Plug, Gold Plating 3u" On Contacts With Shell

FMP04-103B

8P8C Modular Plug, Gold Plating 3u" On Contacts With Shell

Product Number：FMP04-103B

Production Status： Active

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{2.399693\|tradeCurrencySymbol({digits:6})}}
10+	{{1.679785\|tradeCurrencySymbol({digits:6})}}
50+	{{1.439816\|tradeCurrencySymbol({digits:6})}}
100+	{{1.319831\|tradeCurrencySymbol({digits:6})}}
500+	{{1.115857\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 10829

Lead time Ship Immediately

MOQ 1000

MPQ 7000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Network Connector (RJ45/RJ11)

Product Category

RJ45 Connector

Style

Modular plug

Number of Positions

8Circuits

Positions/Contacts

8P8C

Orientation

Vertical(180°)

Colour

Clear

Performance Category

Cat.5

Current(Max)

Voltage(Max)

40V

Contact Resistance

35 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mounting Style

IDC

Material-Contact

Copper alloy

Plating

Gold plated

Plating Thickness

0.075μm

Material-Resin

Flammability Rating

UL94 V-2

Packaging

PE Bag

Product Drawings

FMP04.pdf

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
