FMP12-301B 8P8C Modular Plug, Gold Plating 1u" On Contacts, CAT6

FMP12-301B

8P8C Modular Plug, Gold Plating 1u" On Contacts, CAT6

Product Number：FMP12-301B

Production Status： Active

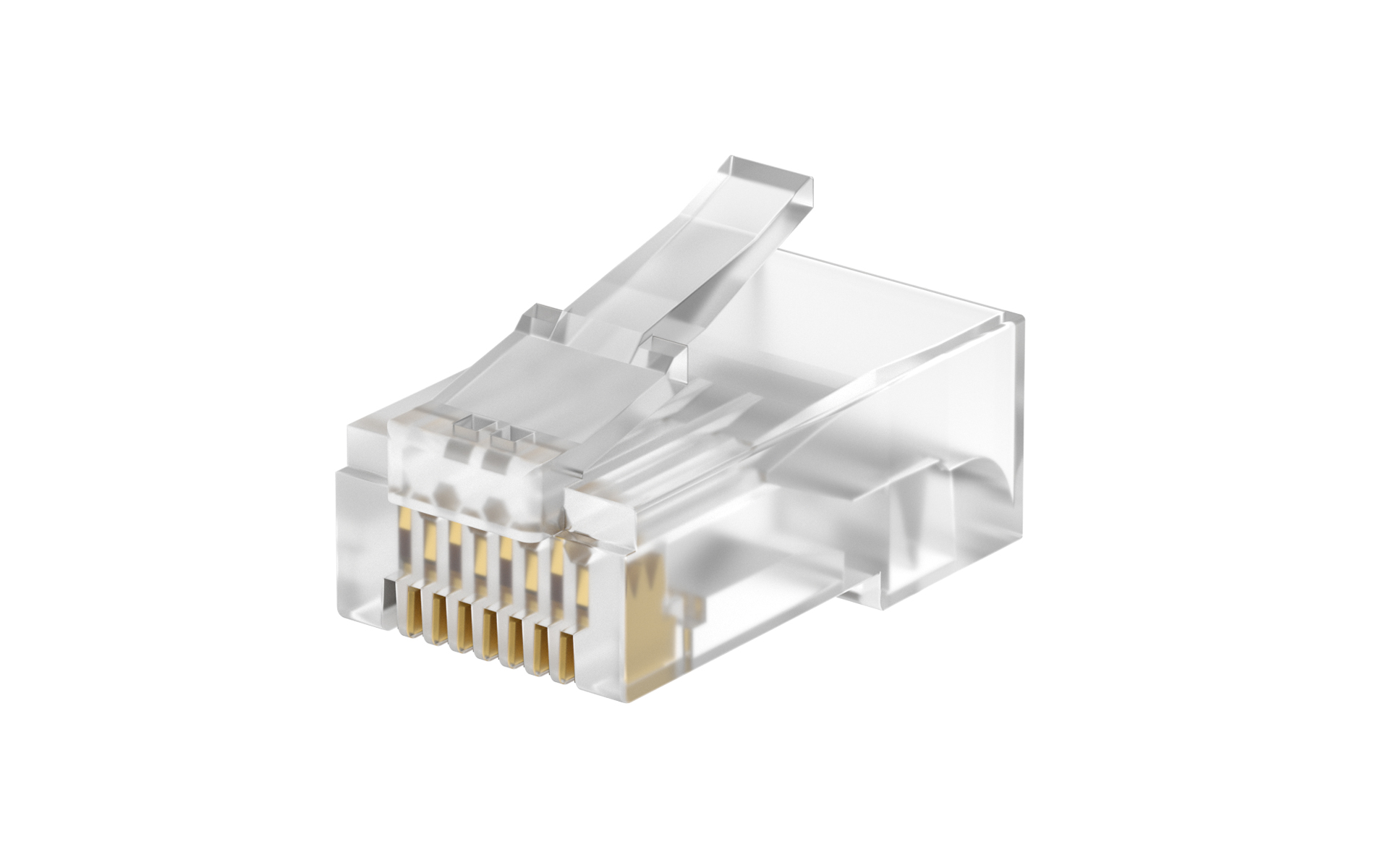

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{0.943971\|tradeCurrencySymbol({digits:6})}}
10+	{{0.887971\|tradeCurrencySymbol({digits:6})}}
50+	{{0.775969\|tradeCurrencySymbol({digits:6})}}
100+	{{0.719968\|tradeCurrencySymbol({digits:6})}}
500+	{{0.607966\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 15

Lead time Ship Immediately

MOQ 50000

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Network Connector (RJ45/RJ11)

Product Category

RJ45 Connector

Style

Modular plug

Number of Positions

8Circuits

Positions/Contacts

8P8C

Orientation

Vertical(180°)

Colour

Clear

Performance Category

Cat.6

Current(Max)

Voltage(Max)

250V

Contact Resistance

30 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

1000V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Mounting Style

IDC

Material-Contact

Copper alloy

Plating

Gold on contact, bright tin on tail

Plating Thickness

0.025μm

Material-Resin

Flammability Rating

UL94 V-0

Packaging

PE Bag

Product Drawings

FMP12.pdf

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
