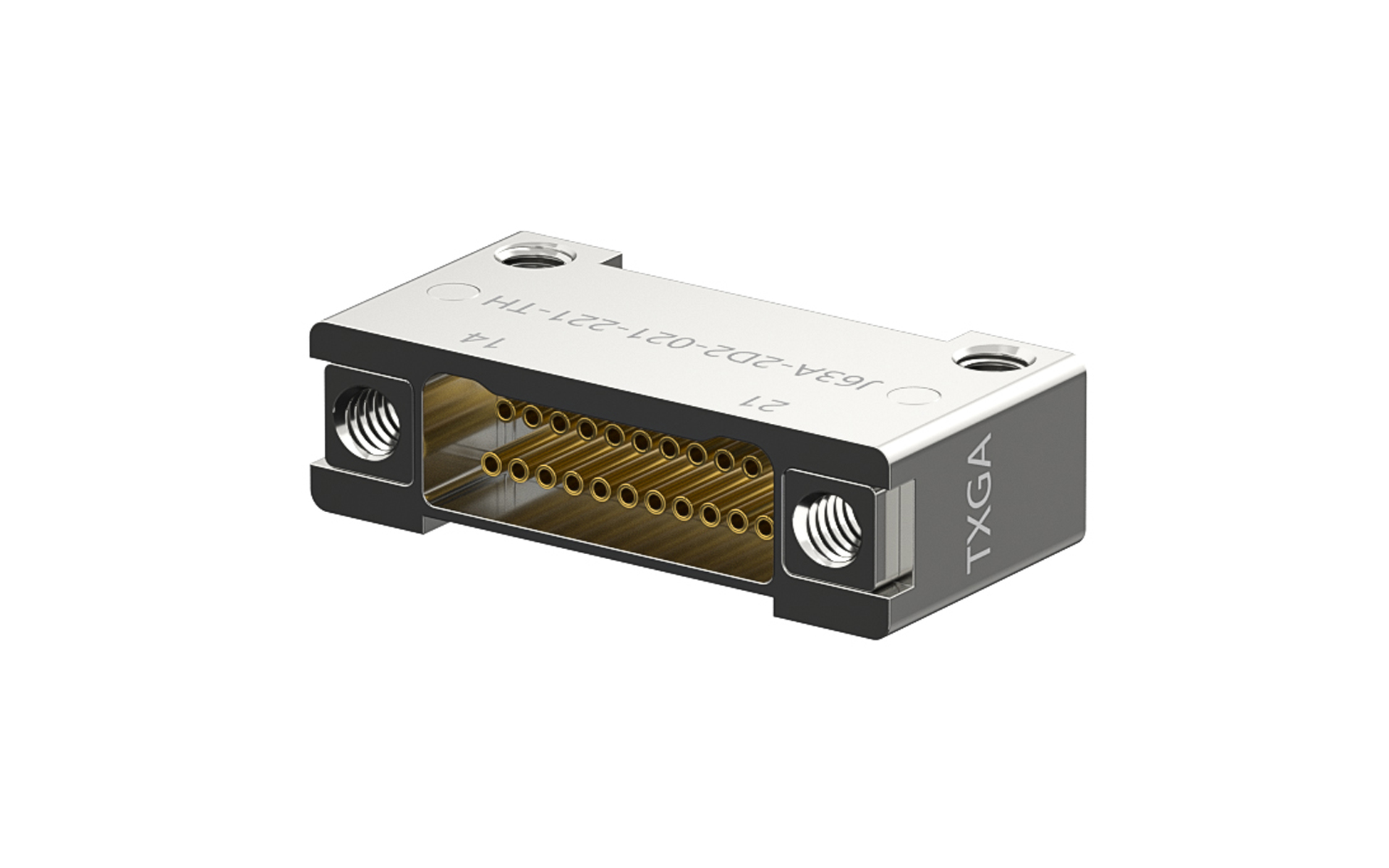

FND001-F021BSBK-S0 Nano-D connector, 21Circuits, Female, Right angle(90°), SMT, Black (J63A-2D2-021-221-TH)

FND001-F021BSBK-S0

超微D形连接器, 21位, 母, 直角(90度), 表面贴装, 黑色 (J63A-2D2-021-221-TH)

Nano-D connector, 21Circuits, Female, Right angle(90°), SMT, Black (J63A-2D2-021-221-TH)

Product Number：FND001-F021BSBK-S0

Production Status： Active

Nano-D connector, 21Circuits, Female, Right angle(90°), SMT, Black (J63A-2D2-021-221-TH)

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{267.841808\|tradeCurrencySymbol({digits:6})}}
5+	{{260.401758\|tradeCurrencySymbol({digits:6})}}
10+	{{254.82172\|tradeCurrencySymbol({digits:6})}}
50+	{{249.241683\|tradeCurrencySymbol({digits:6})}}
100+	{{241.801632\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 2

Lead time Ship Immediately

MOQ 1

MPQ 200

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Nano-D Connector

Product Category

Nano-D connector

Style

Socket

Gender

Female

Pitch

0.635mm

Row Option

Dual row

Number of Positions

21Circuits

Contacts Type

socket

Orientation

Right angle(90°)

Colour

Black

Current(Max)

Voltage(Max)

24V

Contact Resistance

21 mΩ Max

Insulation Resistance

5000 MΩ Min

Withstanding Voltage

250V AC r.m.s

Operating Temperature Range

-55ºC~+125ºC

Waterproof / Dustproof

Mounting Style

SMT

Material-Contact

Copper alloy

Plating

Gold plated

Plating Thickness

1μm

Material-Resin

PTFE

Flammability Rating

UL94 V-0

Packaging

Box

Product Drawings

FND001-FXXXBSBK-S0.pdf

3D Drawings

FND001-F021BSBK-S0.stp

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
