排针,1.27mm, 双排,20位,直角(90度),通孔焊接,0.025μm,PA6T
FPH12734-D20B1014080411B

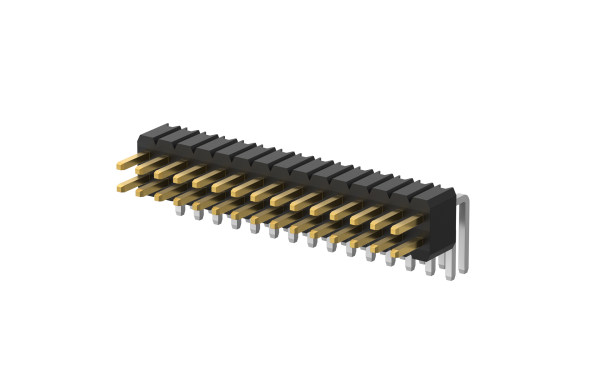

Pin Header, 1.27mm, Dual row, 20Circuits, Right angle(90°), Through hole, 0.025μm, PA6T
FPH12734-D20B1014080411B Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-07-04
MPQ
20
MOQ
20
Quantity Unit Price
1 $0.315710
10 $0.273615
50 $0.227311
100 $0.207316
500 $0.182059
1000 $0.142069
5000 $0.139965
10000 $0.133733
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Pin Header
Style
Plug
Pitch
1.27mm
Row Option
Dual row
Number of Positions
20Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
600V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FPH12734FPH12734series.pdf

3D Drawings

FPH12734-D20B1014080411B_REF
Receptacle
Female Header 1.27mm 180°Vertical Double Row 20Circuits(SMT)(1μ'')

FFH12709-D20S1014K6M1

Female Header 1.27mm 180°Vertical Double Row 20Circuits(SMT)(1μ'')
