FPH20079-F160B1014150507K
排针,2mm,双塑 四排,160位,直角(90度),通孔焊接,0.025μm,PA6T
Pin Header, 2mm, 4 rows, 160Circuits, Right angle(90°), Through hole, 0.025μm, PA6T
Product Number：FPH20079-F160B1014150507K
Production Status： Active

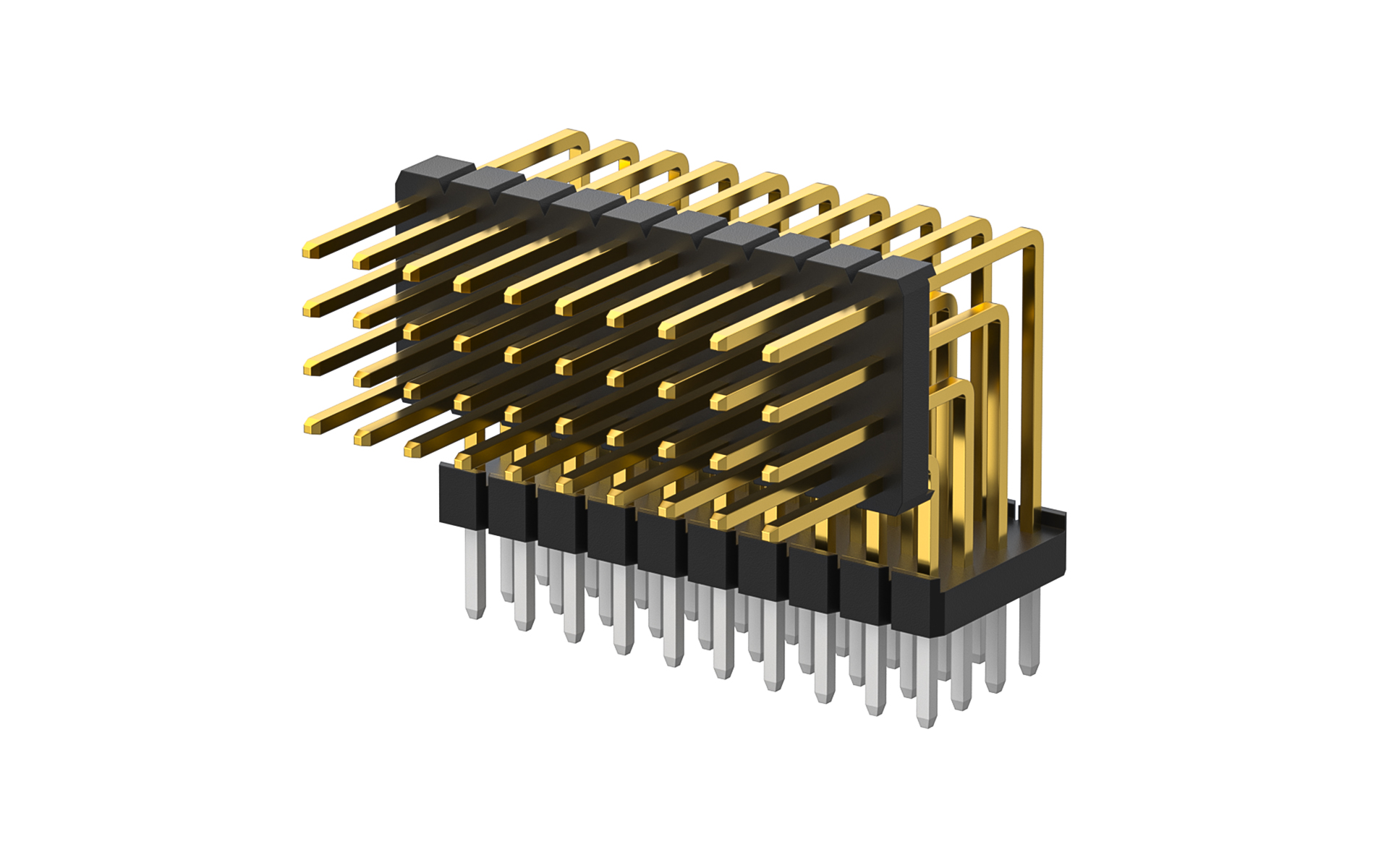

Pin Header, 2mm, 4 rows, 160Circuits, Right angle(90°), Through hole, 0.025μm, PA6T
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Pin Header
Style
Plug
Pitch
2mm
Row Option
4 rows
Number of Positions
160Circuits
Orientation
Right angle(90°)
Colour
Black
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
600V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mounting Style
Through hole
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Tray

Product Drawings

FPH20079 Series.pdf
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
