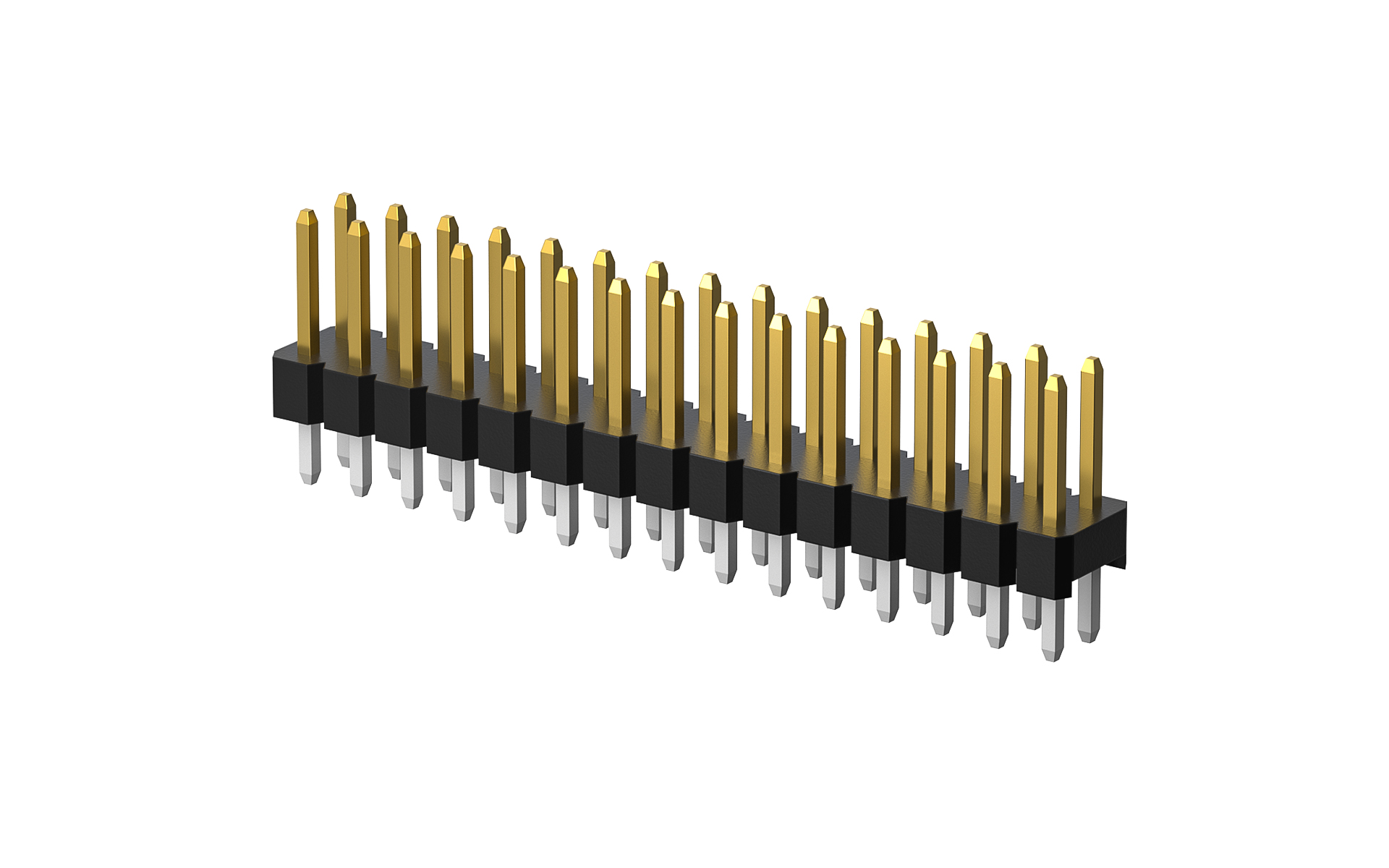

FPH25452-D24S1014190740B Pin Header 2.54mm, Double row, 24Circuits, 180° Vertical(DIP), 1μ", PA6T

FPH25452-D24S1014190740B

Pin Header 2.54mm, Double row, 24Circuits, 180° Vertical(DIP), 1μ", PA6T

Product Number：FPH25452-D24S1014190740B

Production Status： Active

Pin Header 2.54mm, Double row, 24Circuits, 180° Vertical(DIP), 1μ

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{3.00016\|tradeCurrencySymbol({digits:6})}}
10+	{{2.600138\|tradeCurrencySymbol({digits:6})}}
50+	{{2.210118\|tradeCurrencySymbol({digits:6})}}
100+	{{2.050109\|tradeCurrencySymbol({digits:6})}}
500+	{{1.780095\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 1000

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Pin Header/Female Header

Product Category

Pin Header

Style

Plug

Pitch

2.54mm

Row Option

Dual row

Number of Positions

24Circuits

Orientation

Vertical(180°)

Colour

Black

Current(Max)

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

600V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mounting Style

Through hole

Material-Contact

Brass

Plating

Gold plated

Plating Thickness

0.025μm

Material-Resin

PA6T

Flammability Rating

UL94 V-0

Packaging

PE Bag

Product Drawings

FPH25452 Series.pdf

3D Drawings

FPH25452-D24S1014190740B-REF.STEP

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
