FPI08005-F52B1003BKMH40

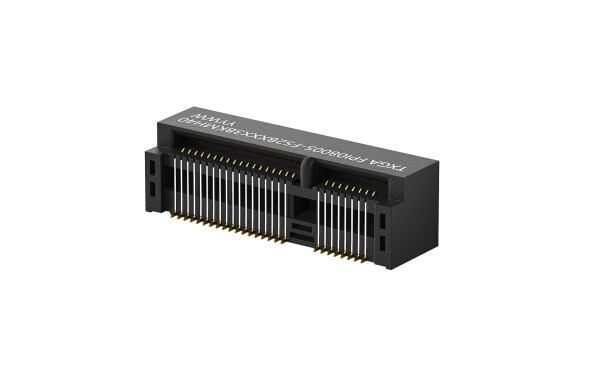

Mini PCIe, 0.8mm, 母, 52位, 直角(90度), 表面贴装, 黑色, H=4mm
Mini PCIe, 0.8mm, Female, 52Circuits, Right angle(90°), SMT, Black, H=4mm
Product Number：FPI08005-F52B1003BKMH40
Production Status： Active
Mini PCIe, 0.8mm, Female, 52Circuits, Right angle(90°), SMT, Black, H=4mm
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{0.616888|tradeCurrencySymbol({digits:6})}}
650+ {{0.50387|tradeCurrencySymbol({digits:6})}}
3900+ {{0.32728|tradeCurrencySymbol({digits:6})}}
6500+ {{0.322571|tradeCurrencySymbol({digits:6})}}
13000+ {{0.317862|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 526
Lead time Ship Immediately
MOQ 3900
MPQ 3250

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Memory Module Socket
Product Category
PCIe
Style
Socket
Gender
Female
Pitch
0.8mm
Number of Positions
52Circuits
Height(mm)
H4
Orientation
Right angle(90°)
Colour
Black
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
55 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
300V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mounting Style
SMT
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Reel

Product Drawings

FPI08005-F52BXXX3BKMH40.pdf

3D Drawings

FPI08005-F52BXXX3BKMH40.stp

Product Specifications

Product specification Min PCIE.pdf English Version
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
