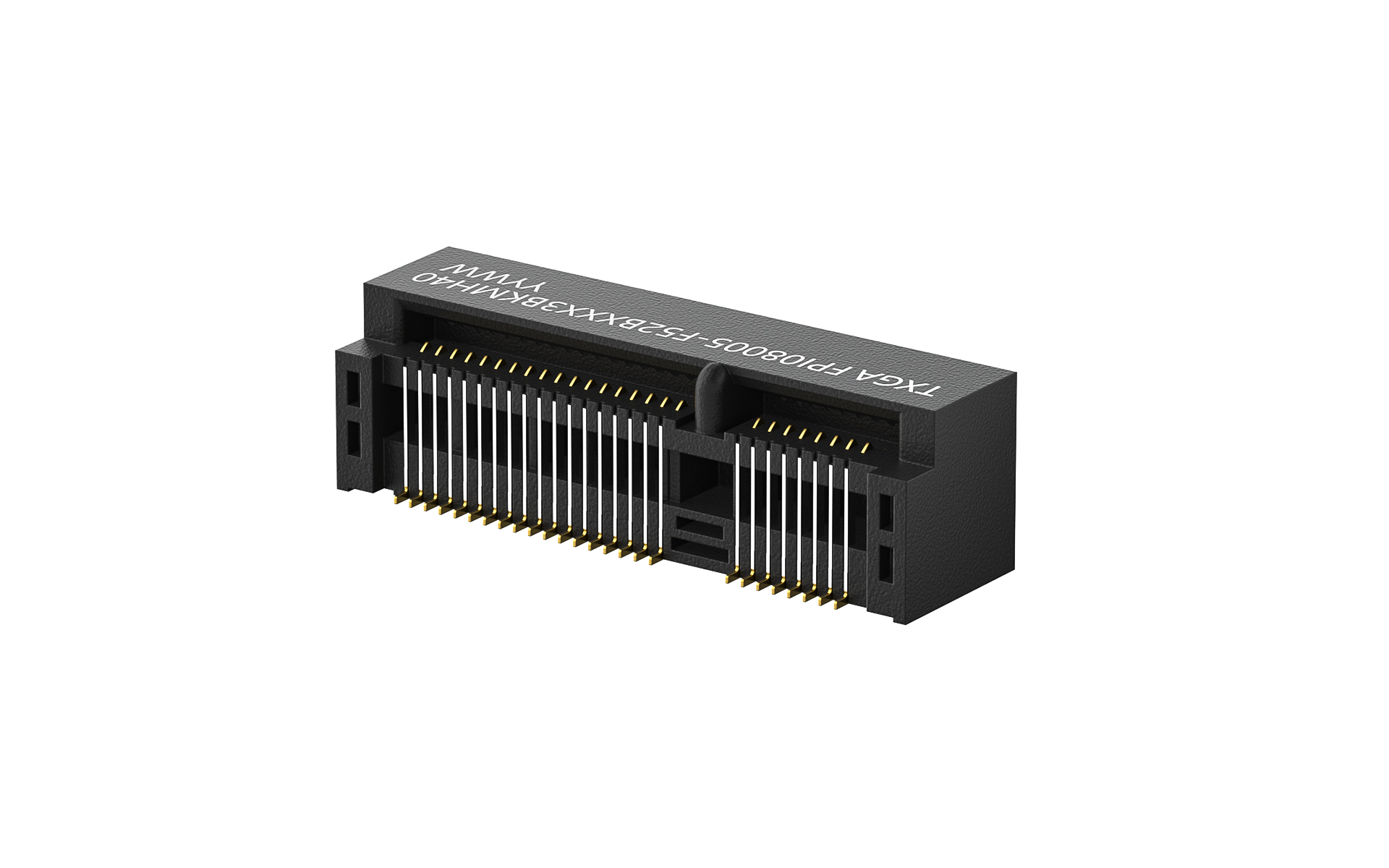

Mini PCIe, 0.8mm, 母, 52位, 直角(90度), 表面贴装, 黑色, H=9mm
FPI08005-F52B1003BKMH90
Mini PCIe, 0.8mm, Female, 52Circuits, Right angle(90°), SMT, Black, H=9mm
FPI08005-F52B1003BKMH90 Copy
Share this product
Stock(pcs)
243
Lead time

≦ 243 In stock

＞ 243 Estimated delivery date 2025-07-11

MPQ
350
MOQ
2100
Quantity Unit Price
1 $0.893713
10 $0.835724
50 $0.729979
100 $0.682224
500 $0.583301
1000 $0.465618
5000 $0.458795
10000 $0.451973
Category
Product Catalog
Connectors
Product System
Memory Module Socket
Product Category
PCIe
Style
Socket
Gender
Female
Pitch
0.8mm
Number of Positions
52Circuits
Height(mm)
H9
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
55 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
300V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FPI08005-F52BXXX3BKMH90

3D Drawings

FPI08005-F52BXXX4BKMH90

Product Specifications

Product specification Min PCIE
